ISL6569ACBZ-T

Enlarger

Lmages are for reference only See Product Specitications

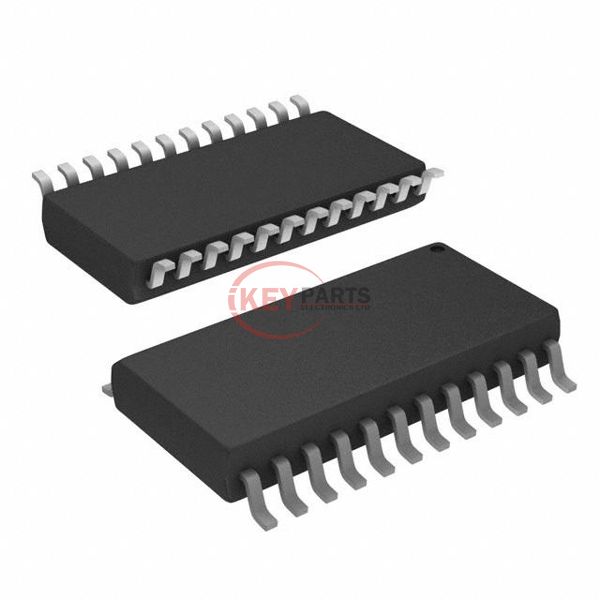

Intersil (Renesas Electronics America) ISL6569ACBZ-T

Manufacturer :
Intersil (Renesas Electronics America)
Mfr. Part # :
ISL6569ACBZ-T
Description
IC REG CTRLR BUCK 24SOIC
Catalog
PMIC - Voltage Regulators - DC DC Switching Controllers
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
ISL6569ACBZ-T PDF
ISL6569ACBZ-T Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusObsolete
Output TypePWM Signal
FunctionStep-Down
Output ConfigurationPositive
TopologyBuck
Number of Outputs2
Output Phases2
Voltage - Supply (Vcc/Vdd)4.75V ~ 5.25V
Frequency - Switching80kHz ~ 1MHz
Duty Cycle (Max)75%
Synchronous Rectifier-
Clock SyncNo
Serial Interfaces-
Control FeaturesCurrent Limit, Enable, Frequency Control, Power Good
Operating Temperature0°C ~ 70°C (TA)
Mounting TypeSurface Mount
Package / Case24-SOIC (0.295", 7.50mm Width)
Supplier Device Package24-SOIC
Request Quote Now
Request Quote Now

We can supply ISL6569ACBZ-T, use the request quote form to request ISL6569ACBZ-T pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number ISL6569ACBZ-T. The price and lead time for ISL6569ACBZ-T depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# ISL6569ACBZ-T. We look forward to working with you to establish long-term relations of cooperation.
