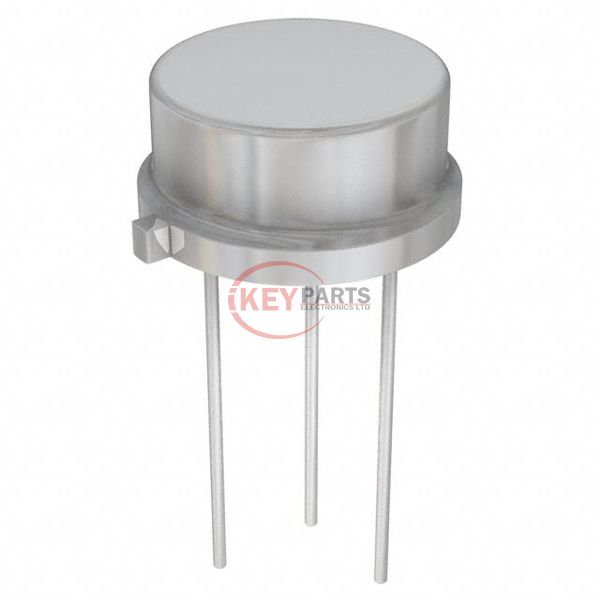

2N5109

Enlarger

Lmages are for reference only See Product Specitications

Microsemi 2N5109

Manufacturer :
Microsemi
Mfr. Part # :
2N5109
Description
RF TRANS NPN 20V 1.2GHZ TO39
Catalog
Transistors - Bipolar (BJT) - RF
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
2N5109 PDF
2N5109 Tech Specifications
Series-
PackageBulk
Part StatusObsolete
Transistor TypeNPN
Voltage - Collector Emitter Breakdown (Max)20V
Frequency - Transition1.2GHz
Noise Figure (dB Typ @ f)-
Gain12dB
Power - Max2.5W
DC Current Gain (hFE) (Min) @ Ic, Vce40 @ 50mA, 15V
Current - Collector (Ic) (Max)400mA
Operating Temperature-
Mounting TypeThrough Hole
Package / CaseTO-205AD, TO-39-3 Metal Can
Supplier Device PackageTO-39
Request Quote Now
Request Quote Now

We can supply 2N5109, use the request quote form to request 2N5109 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 2N5109. The price and lead time for 2N5109 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 2N5109. We look forward to working with you to establish long-term relations of cooperation.
