SSM3J120TU,LF

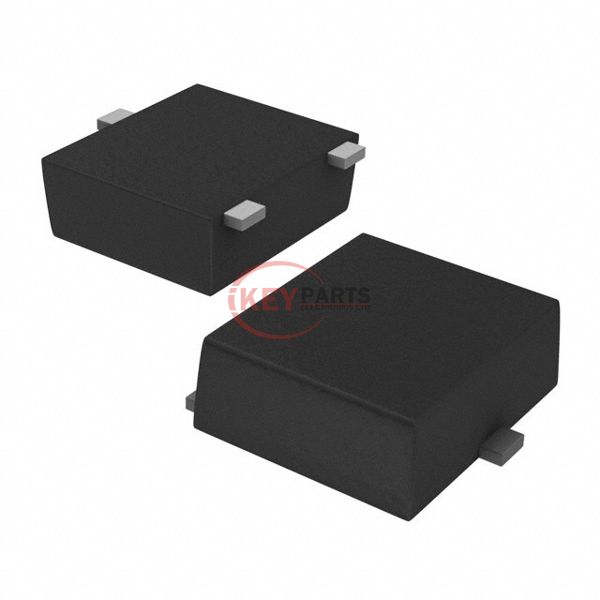

Enlarger

Lmages are for reference only See Product Specitications

Toshiba Electronic Devices and Storage Corporation SSM3J120TU,LF

Manufacturer :
Toshiba Electronic Devices and Storage Corporation
Mfr. Part # :
SSM3J120TU,LF
Description
MOSFET P-CH 20V 4A UFM
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
SSM3J120TU,LF PDF
In Stock
571
SSM3J120TU,LF Tech Specifications
SeriesU-MOSIV
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C4A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.5V, 4V
Rds On (Max) @ Id, Vgs38mOhm @ 3A, 4V
Vgs(th) (Max) @ Id1V @ 1mA
Gate Charge (Qg) (Max) @ Vgs22.3 nC @ 4 V
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds1484 pF @ 10 V
FET Feature-
Power Dissipation (Max)500mW (Ta)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageUFM
Package / Case3-SMD, Flat Lead
Request Quote Now
Request Quote Now

We can supply SSM3J120TU,LF, use the request quote form to request SSM3J120TU,LF pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SSM3J120TU,LF. The price and lead time for SSM3J120TU,LF depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SSM3J120TU,LF. We look forward to working with you to establish long-term relations of cooperation.
