IRFH5306TRPBF

Enlarger

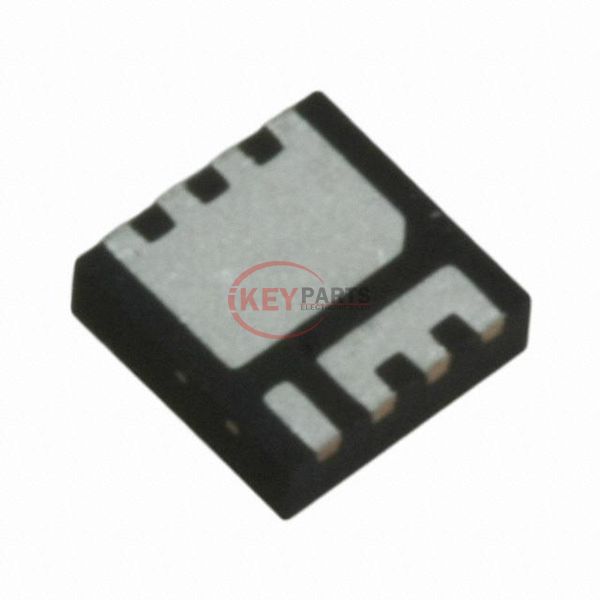

Lmages are for reference only See Product Specitications

IR (Infineon Technologies) IRFH5306TRPBF

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
IRFH5306TRPBF
Description
MOSFET N-CH 30V 15A/44A PQFN
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IRFH5306TRPBF PDF
In Stock
439
IRFH5306TRPBF Tech Specifications
SeriesHEXFET®
PackageTape & Reel (TR)
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C15A (Ta), 44A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs8.1mOhm @ 15A, 10V
Vgs(th) (Max) @ Id2.35V @ 25µA
Gate Charge (Qg) (Max) @ Vgs12 nC @ 4.5 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds1125 pF @ 15 V
FET Feature-
Power Dissipation (Max)3.6W (Ta), 26W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePQFN (5x6) Single Die
Package / Case8-PowerVDFN
Request Quote Now
Request Quote Now

We can supply IRFH5306TRPBF, use the request quote form to request IRFH5306TRPBF pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IRFH5306TRPBF. The price and lead time for IRFH5306TRPBF depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IRFH5306TRPBF. We look forward to working with you to establish long-term relations of cooperation.
