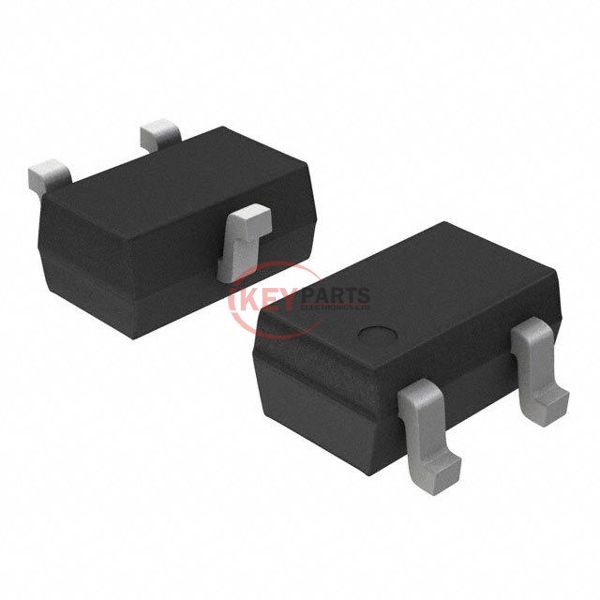

2N7002WT3G

Enlarger

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor 2N7002WT3G

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
2N7002WT3G
Description
MOSFET N-CH 60V 310MA SC70-3
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
2N7002WT3G PDF
In Stock
322
2N7002WT3G Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C310mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs1.6Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs0.7 nC @ 4.5 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds24.5 pF @ 20 V
FET Feature-
Power Dissipation (Max)280mW (Tj)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSC-70-3 (SOT323)
Package / CaseSC-70, SOT-323
Request Quote Now
Request Quote Now

We can supply 2N7002WT3G, use the request quote form to request 2N7002WT3G pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 2N7002WT3G. The price and lead time for 2N7002WT3G depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 2N7002WT3G. We look forward to working with you to establish long-term relations of cooperation.
