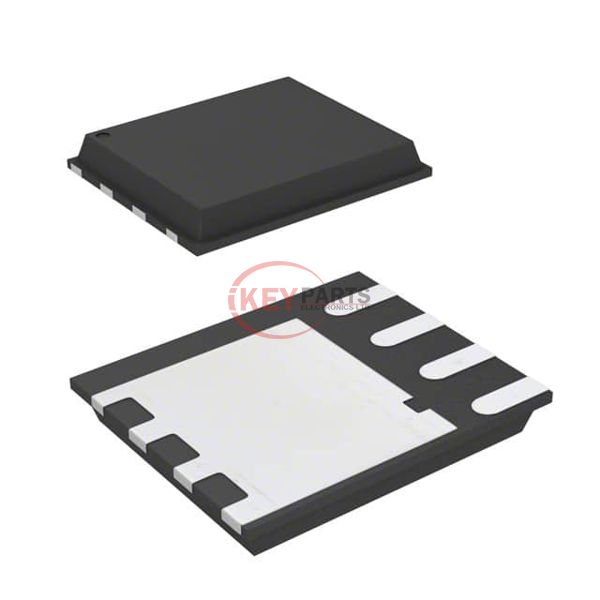

STL150N3LLH5

Enlarger

Lmages are for reference only See Product Specitications

STMicroelectronics STL150N3LLH5

Manufacturer :
STMicroelectronics
Mfr. Part # :
STL150N3LLH5
Description
MOSFET N-CH 30V 195A POWERFLAT
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
STL150N3LLH5 PDF
In Stock
949
STL150N3LLH5 Tech Specifications
SeriesSTripFET™ V
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C195A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs1.75mOhm @ 17.5A, 10V
Vgs(th) (Max) @ Id2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs40 nC @ 4.5 V
Vgs (Max)±22V
Input Capacitance (Ciss) (Max) @ Vds5800 pF @ 25 V
FET Feature-
Power Dissipation (Max)114W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePowerFlat™ (5x6)
Package / Case8-PowerVDFN
Request Quote Now
Request Quote Now

We can supply STL150N3LLH5, use the request quote form to request STL150N3LLH5 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number STL150N3LLH5. The price and lead time for STL150N3LLH5 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# STL150N3LLH5. We look forward to working with you to establish long-term relations of cooperation.
