NTLJS3180PZTBG

Enlarger

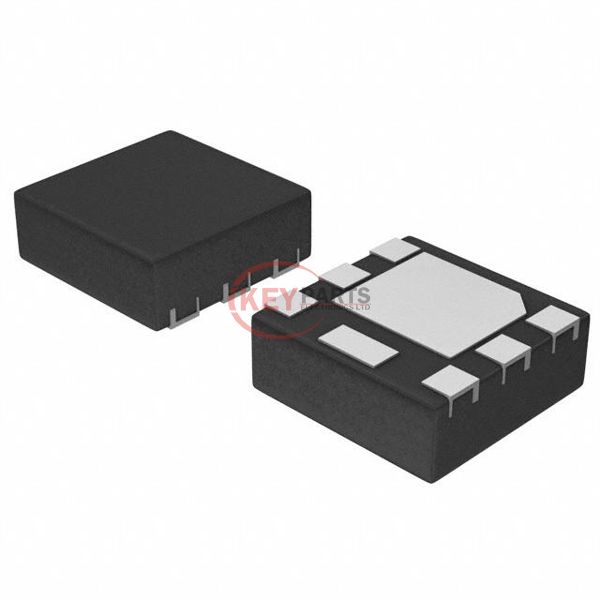

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor NTLJS3180PZTBG

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
NTLJS3180PZTBG
Description
MOSFET P-CH 20V 3.5A 6WDFN
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
NTLJS3180PZTBG PDF
In Stock
814
NTLJS3180PZTBG Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusObsolete
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C3.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.5V, 4.5V
Rds On (Max) @ Id, Vgs38mOhm @ 3A, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs19.5 nC @ 4.5 V
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds1100 pF @ 16 V
FET Feature-
Power Dissipation (Max)700mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package6-WDFN (2x2)
Package / Case6-WDFN Exposed Pad
Request Quote Now
Request Quote Now

We can supply NTLJS3180PZTBG, use the request quote form to request NTLJS3180PZTBG pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NTLJS3180PZTBG. The price and lead time for NTLJS3180PZTBG depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# NTLJS3180PZTBG. We look forward to working with you to establish long-term relations of cooperation.
