2SK3430-Z-E1-AZ

Enlarger

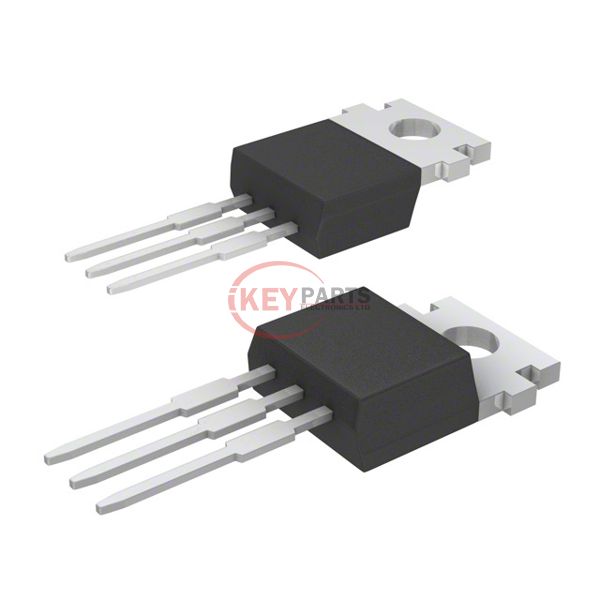

Lmages are for reference only See Product Specitications

Renesas Electronics America 2SK3430-Z-E1-AZ

Manufacturer :
Renesas Electronics America
Mfr. Part # :
2SK3430-Z-E1-AZ
Description
MOSFET N-CH 40V 80A TO220AB
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
2SK3430-Z-E1-AZ PDF
In Stock
970
2SK3430-Z-E1-AZ Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C80A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4V, 10V
Rds On (Max) @ Id, Vgs7.3mOhm @ 40A, 10V
Vgs(th) (Max) @ Id-
Gate Charge (Qg) (Max) @ Vgs50 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds2800 pF @ 10 V
FET Feature-
Power Dissipation (Max)1.5W (Ta), 84W (Tc)
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-220AB
Package / CaseTO-220-3
Request Quote Now
Request Quote Now

We can supply 2SK3430-Z-E1-AZ, use the request quote form to request 2SK3430-Z-E1-AZ pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 2SK3430-Z-E1-AZ. The price and lead time for 2SK3430-Z-E1-AZ depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 2SK3430-Z-E1-AZ. We look forward to working with you to establish long-term relations of cooperation.
