BSR315PL6327HTSA1

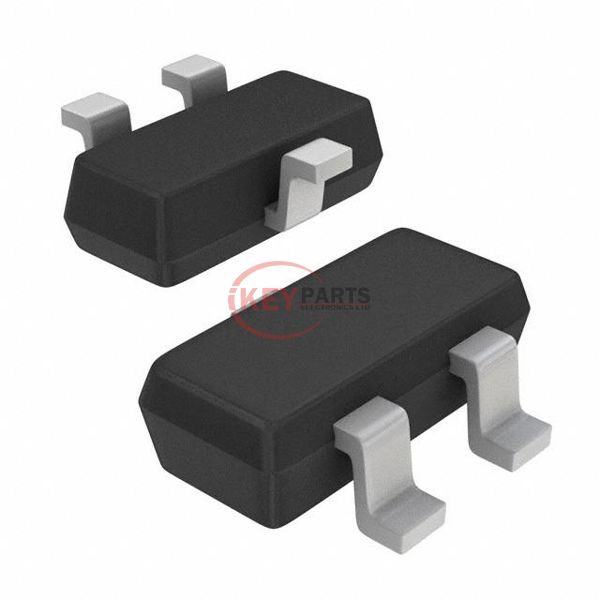

Enlarger

Lmages are for reference only See Product Specitications

IR (Infineon Technologies) BSR315PL6327HTSA1

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
BSR315PL6327HTSA1
Description
MOSFET P-CH 60V 620MA SC59
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
BSR315PL6327HTSA1 PDF
In Stock
702
BSR315PL6327HTSA1 Tech Specifications
SeriesSIPMOS®
PackageTape & Reel (TR)
Part StatusDiscontinued at Digi-Key
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C620mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs800mOhm @ 620mA, 10V
Vgs(th) (Max) @ Id2V @ 160µA
Gate Charge (Qg) (Max) @ Vgs6 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds176 pF @ 25 V
FET Feature-
Power Dissipation (Max)500mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-SC-59
Package / CaseTO-236-3, SC-59, SOT-23-3
Request Quote Now
Request Quote Now

We can supply BSR315PL6327HTSA1, use the request quote form to request BSR315PL6327HTSA1 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number BSR315PL6327HTSA1. The price and lead time for BSR315PL6327HTSA1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# BSR315PL6327HTSA1. We look forward to working with you to establish long-term relations of cooperation.
