IPS12CN10LGBKMA1

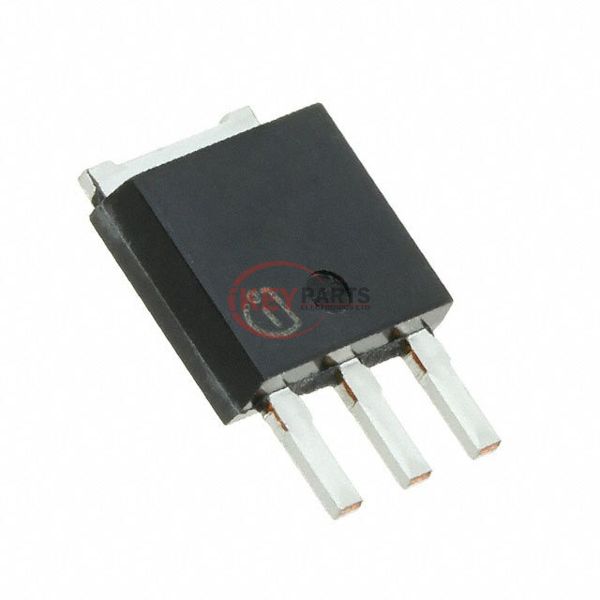

Enlarger

Lmages are for reference only See Product Specitications

IR (Infineon Technologies) IPS12CN10LGBKMA1

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
IPS12CN10LGBKMA1
Description
MOSFET N-CH 100V 69A TO251-3
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IPS12CN10LGBKMA1 PDF
In Stock
639
IPS12CN10LGBKMA1 Tech Specifications
SeriesOptiMOS™
PackageTube
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)100 V
Current - Continuous Drain (Id) @ 25°C69A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs11.8mOhm @ 69A, 10V
Vgs(th) (Max) @ Id2.4V @ 83µA
Gate Charge (Qg) (Max) @ Vgs58 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds5600 pF @ 50 V
FET Feature-
Power Dissipation (Max)125W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackagePG-TO251-3
Package / CaseTO-251-3 Stub Leads, IPak
Request Quote Now
Request Quote Now

We can supply IPS12CN10LGBKMA1, use the request quote form to request IPS12CN10LGBKMA1 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IPS12CN10LGBKMA1. The price and lead time for IPS12CN10LGBKMA1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IPS12CN10LGBKMA1. We look forward to working with you to establish long-term relations of cooperation.
