ECH8315-TL-W

Enlarger

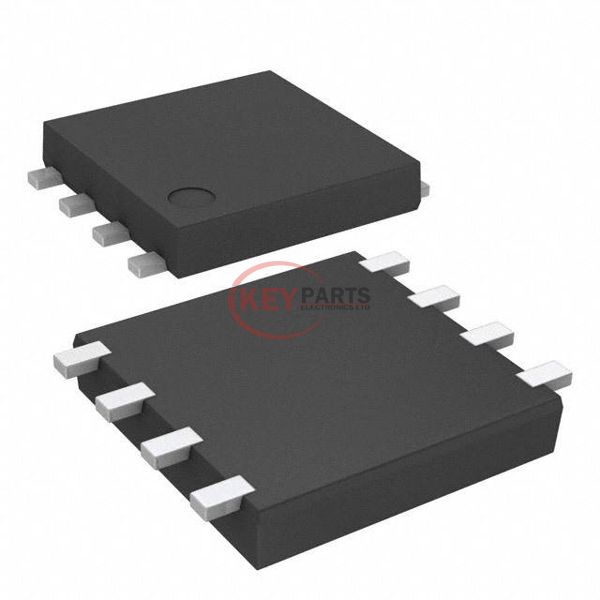

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor ECH8315-TL-W

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
ECH8315-TL-W
Description
MOSFET P-CH 30V 7.5A SOT28FL
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
ECH8315-TL-W PDF
In Stock
364
ECH8315-TL-W Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusObsolete
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C7.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)4V, 10V
Rds On (Max) @ Id, Vgs25mOhm @ 3.5A, 10V
Vgs(th) (Max) @ Id2.6V @ 1mA
Gate Charge (Qg) (Max) @ Vgs18 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds875 pF @ 10 V
FET Feature-
Power Dissipation (Max)1.5W (Ta)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSOT-28FL/ECH8
Package / Case8-SMD, Flat Lead
Request Quote Now
Request Quote Now

We can supply ECH8315-TL-W, use the request quote form to request ECH8315-TL-W pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number ECH8315-TL-W. The price and lead time for ECH8315-TL-W depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# ECH8315-TL-W. We look forward to working with you to establish long-term relations of cooperation.
