PH1330AL,115

Enlarger

Lmages are for reference only See Product Specitications

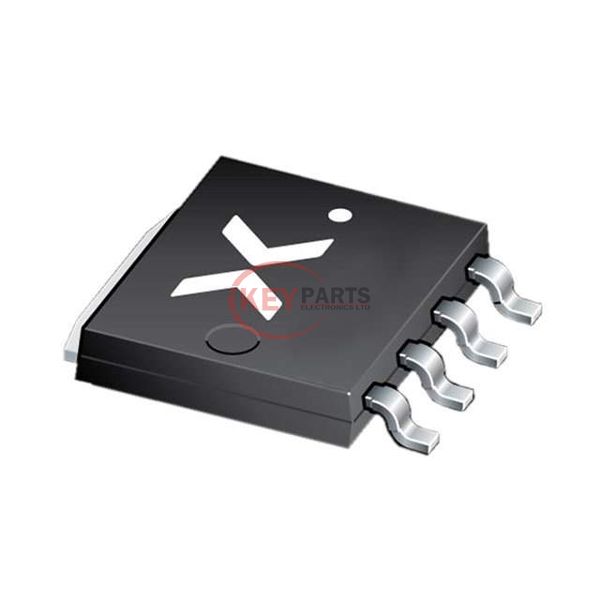

Nexperia PH1330AL,115

Manufacturer :
Nexperia
Mfr. Part # :
PH1330AL,115
Description
MOSFET N-CH 30V 100A LFPAK56
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PH1330AL,115 PDF
In Stock
624
PH1330AL,115 Tech Specifications
SeriesTrenchMOS™
PackageTape & Reel (TR)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)-
Rds On (Max) @ Id, Vgs1.3mOhm @ 15A, 10V
Vgs(th) (Max) @ Id2.15V @ 1mA
Gate Charge (Qg) (Max) @ Vgs100 nC @ 10 V
Vgs (Max)-
Input Capacitance (Ciss) (Max) @ Vds6227 pF @ 12 V
FET Feature-
Power Dissipation (Max)-
Operating Temperature-
Mounting TypeSurface Mount
Supplier Device PackageLFPAK56, Power-SO8
Package / CaseSOT-1023, 4-LFPAK
Request Quote Now
Request Quote Now

We can supply PH1330AL,115, use the request quote form to request PH1330AL,115 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PH1330AL,115. The price and lead time for PH1330AL,115 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PH1330AL,115. We look forward to working with you to establish long-term relations of cooperation.
