APT40SM120S

Enlarger

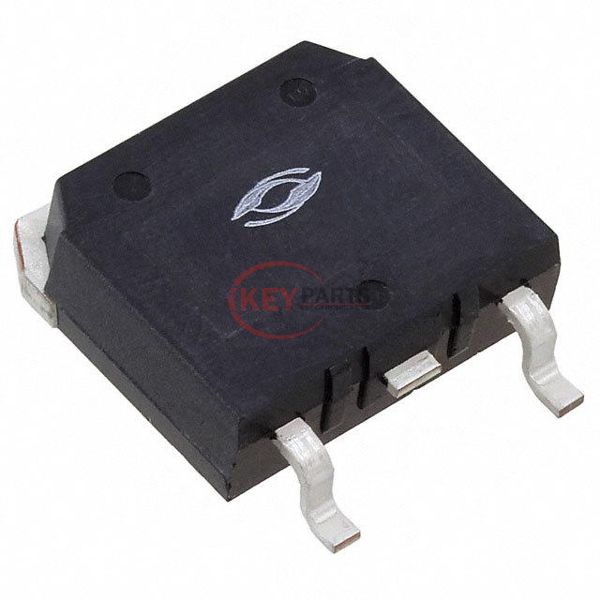

Lmages are for reference only See Product Specitications

Microsemi APT40SM120S

Manufacturer :
Microsemi
Mfr. Part # :
APT40SM120S
Description
SICFET N-CH 1200V 41A D3PAK
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
APT40SM120S PDF
In Stock
612
APT40SM120S Tech Specifications
Series-
PackageBulk
Part StatusObsolete
FET TypeN-Channel
TechnologySiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss)1200 V
Current - Continuous Drain (Id) @ 25°C41A (Tc)
Drive Voltage (Max Rds On, Min Rds On)20V
Rds On (Max) @ Id, Vgs100mOhm @ 20A, 20V
Vgs(th) (Max) @ Id3V @ 1mA (Typ)
Gate Charge (Qg) (Max) @ Vgs130 nC @ 20 V
Vgs (Max)+25V, -10V
Input Capacitance (Ciss) (Max) @ Vds2560 pF @ 1000 V
FET Feature-
Power Dissipation (Max)273W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageD3Pak
Package / CaseTO-268-3, D³Pak (2 Leads + Tab), TO-268AA
Request Quote Now
Request Quote Now

We can supply APT40SM120S, use the request quote form to request APT40SM120S pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number APT40SM120S. The price and lead time for APT40SM120S depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# APT40SM120S. We look forward to working with you to establish long-term relations of cooperation.
