2SK3748-1E

Enlarger

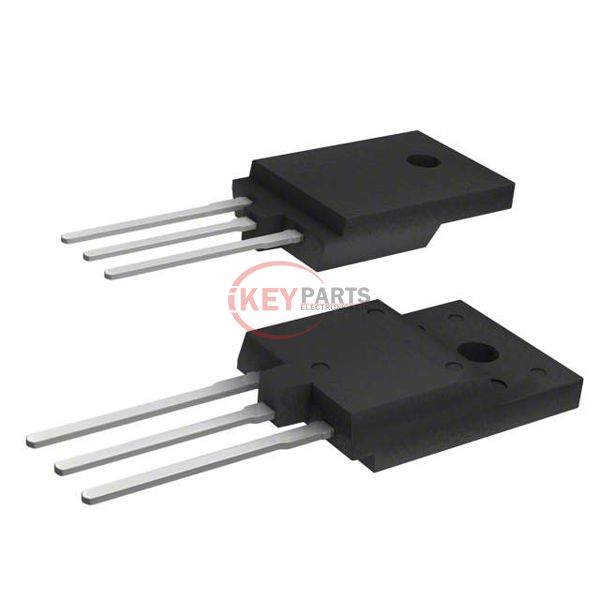

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor 2SK3748-1E

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
2SK3748-1E
Description
MOSFET N-CH 1500V 4A TO3PF-3
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
2SK3748-1E PDF
In Stock
445
2SK3748-1E Tech Specifications
Series-
PackageTube
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)1500 V
Current - Continuous Drain (Id) @ 25°C4A (Ta)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs7Ohm @ 2A, 10V
Vgs(th) (Max) @ Id-
Gate Charge (Qg) (Max) @ Vgs80 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds790 pF @ 30 V
FET Feature-
Power Dissipation (Max)3W (Ta), 65W (Tc)
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-3PF-3
Package / CaseSC-94
Request Quote Now
Request Quote Now

We can supply 2SK3748-1E, use the request quote form to request 2SK3748-1E pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 2SK3748-1E. The price and lead time for 2SK3748-1E depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 2SK3748-1E. We look forward to working with you to establish long-term relations of cooperation.
