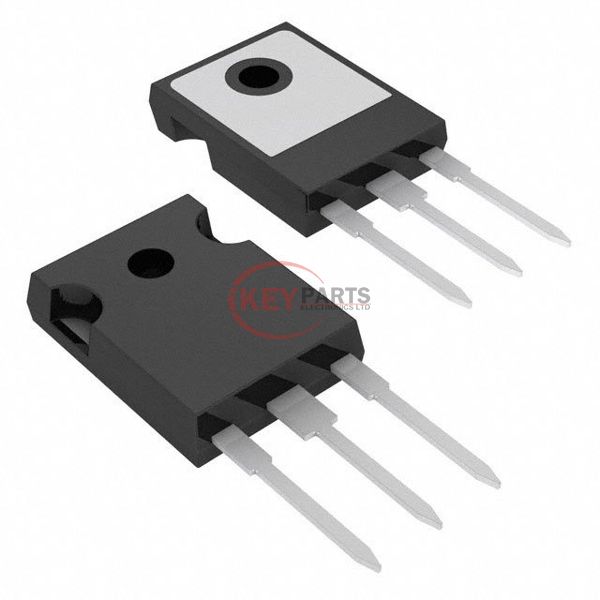

IRFP22N50A

Enlarger

Lmages are for reference only See Product Specitications

Vishay / Siliconix IRFP22N50A

Manufacturer :
Vishay / Siliconix
Mfr. Part # :
IRFP22N50A
Description
MOSFET N-CH 500V 22A TO247-3
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IRFP22N50A PDF
In Stock
341
IRFP22N50A Tech Specifications
Series-
PackageTube
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)500 V
Current - Continuous Drain (Id) @ 25°C22A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs230mOhm @ 13A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs120 nC @ 10 V
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds3450 pF @ 25 V
FET Feature-
Power Dissipation (Max)277W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-247-3
Package / CaseTO-247-3
Request Quote Now
Request Quote Now

We can supply IRFP22N50A, use the request quote form to request IRFP22N50A pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IRFP22N50A. The price and lead time for IRFP22N50A depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IRFP22N50A. We look forward to working with you to establish long-term relations of cooperation.
