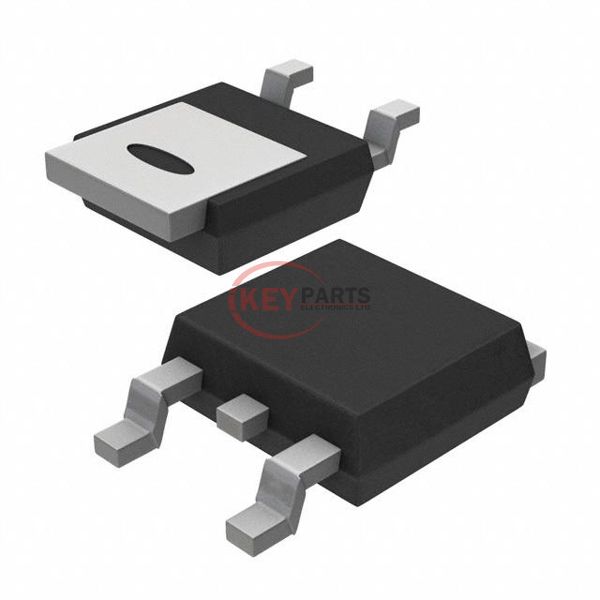

PHD98N03LT,118

Enlarger

Lmages are for reference only See Product Specitications

NXP Semiconductors PHD98N03LT,118

Manufacturer :
NXP Semiconductors
Mfr. Part # :
PHD98N03LT,118
Description
MOSFET N-CH 25V 75A DPAK
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PHD98N03LT,118 PDF
In Stock
242
PHD98N03LT,118 Tech Specifications
SeriesTrenchMOS™
PackageTape & Reel (TR)
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)25 V
Current - Continuous Drain (Id) @ 25°C75A (Tc)
Drive Voltage (Max Rds On, Min Rds On)5V, 10V
Rds On (Max) @ Id, Vgs5.9mOhm @ 25A, 10V
Vgs(th) (Max) @ Id2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs40 nC @ 5 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds3000 pF @ 20 V
FET Feature-
Power Dissipation (Max)111W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageDPAK
Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63
Request Quote Now
Request Quote Now

We can supply PHD98N03LT,118, use the request quote form to request PHD98N03LT,118 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PHD98N03LT,118. The price and lead time for PHD98N03LT,118 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PHD98N03LT,118. We look forward to working with you to establish long-term relations of cooperation.
