PSMN005-25D,118

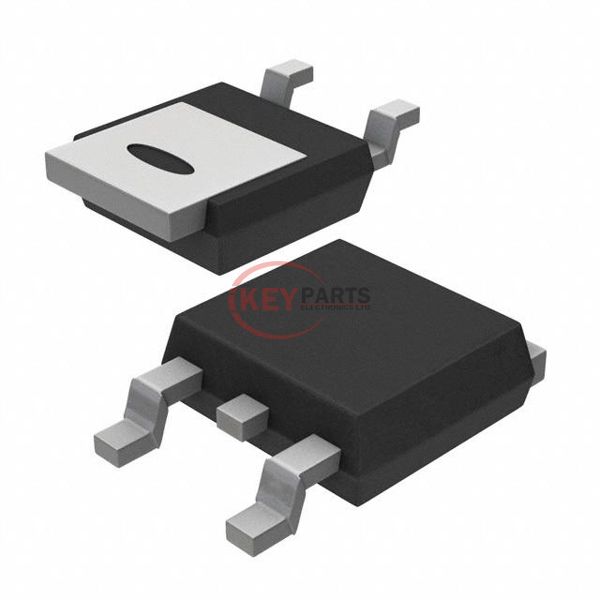

Enlarger

Lmages are for reference only See Product Specitications

NXP Semiconductors PSMN005-25D,118

Manufacturer :
NXP Semiconductors
Mfr. Part # :
PSMN005-25D,118
Description
MOSFET N-CH 25V 75A DPAK
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PSMN005-25D,118 PDF
In Stock
435
PSMN005-25D,118 Tech Specifications
SeriesTrenchMOS™
PackageTape & Reel (TR)
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)25 V
Current - Continuous Drain (Id) @ 25°C75A (Tc)
Drive Voltage (Max Rds On, Min Rds On)5V, 10V
Rds On (Max) @ Id, Vgs5.8mOhm @ 25A, 10V
Vgs(th) (Max) @ Id2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs60 nC @ 5 V
Vgs (Max)±15V
Input Capacitance (Ciss) (Max) @ Vds3500 pF @ 20 V
FET Feature-
Power Dissipation (Max)125W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageDPAK
Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63
Request Quote Now
Request Quote Now

We can supply PSMN005-25D,118, use the request quote form to request PSMN005-25D,118 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PSMN005-25D,118. The price and lead time for PSMN005-25D,118 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PSMN005-25D,118. We look forward to working with you to establish long-term relations of cooperation.
