PHD16N03T,118

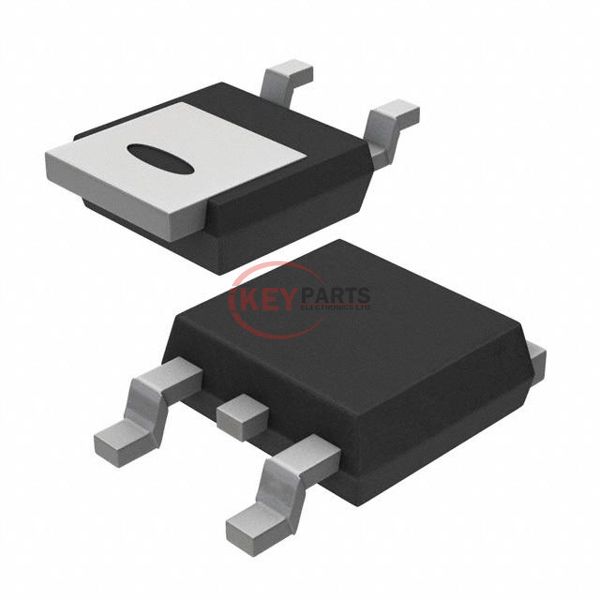

Enlarger

Lmages are for reference only See Product Specitications

NXP Semiconductors PHD16N03T,118

Manufacturer :
NXP Semiconductors
Mfr. Part # :
PHD16N03T,118
Description
MOSFET N-CH 30V 13.1A DPAK
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PHD16N03T,118 PDF
In Stock
819
PHD16N03T,118 Tech Specifications
SeriesTrenchMOS™
PackageTape & Reel (TR)
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C13.1A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs100mOhm @ 13A, 10V
Vgs(th) (Max) @ Id4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs5.2 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds180 pF @ 30 V
FET Feature-
Power Dissipation (Max)32.6W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageDPAK
Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63
Request Quote Now
Request Quote Now

We can supply PHD16N03T,118, use the request quote form to request PHD16N03T,118 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PHD16N03T,118. The price and lead time for PHD16N03T,118 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PHD16N03T,118. We look forward to working with you to establish long-term relations of cooperation.
