SIA814DJ-T1-GE3

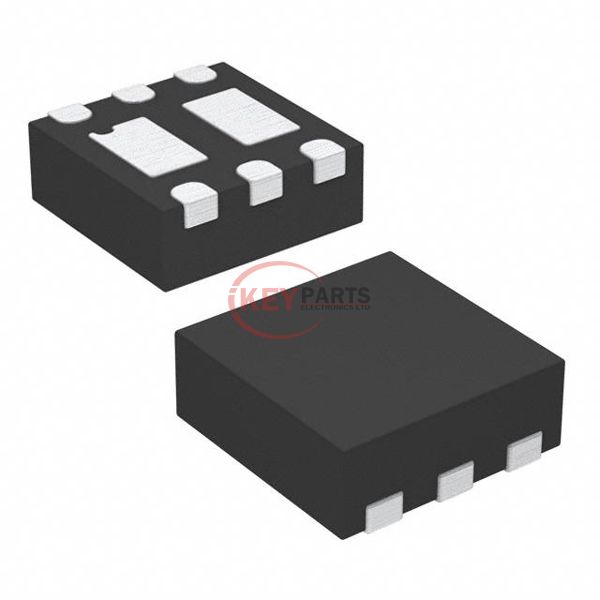

Enlarger

Lmages are for reference only See Product Specitications

Vishay / Siliconix SIA814DJ-T1-GE3

Manufacturer :
Vishay / Siliconix
Mfr. Part # :
SIA814DJ-T1-GE3
Description
MOSFET N-CH 30V 4.5A PPAK SC70-6
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
SIA814DJ-T1-GE3 PDF
In Stock
388
SIA814DJ-T1-GE3 Tech Specifications
SeriesLITTLE FOOT®
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C4.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)2.5V, 10V
Rds On (Max) @ Id, Vgs61mOhm @ 3.3A, 10V
Vgs(th) (Max) @ Id1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs11 nC @ 10 V
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds340 pF @ 10 V
FET FeatureSchottky Diode (Isolated)
Power Dissipation (Max)1.9W (Ta), 6.5W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePowerPAK® SC-70-6 Dual
Package / CasePowerPAK® SC-70-6 Dual
Request Quote Now
Request Quote Now

We can supply SIA814DJ-T1-GE3, use the request quote form to request SIA814DJ-T1-GE3 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SIA814DJ-T1-GE3. The price and lead time for SIA814DJ-T1-GE3 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SIA814DJ-T1-GE3. We look forward to working with you to establish long-term relations of cooperation.
