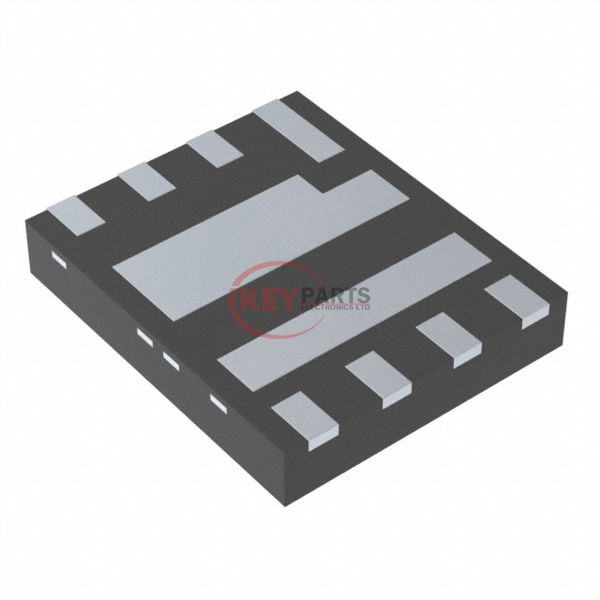

AON6414AL

Enlarger

Lmages are for reference only See Product Specitications

Alpha and Omega Semiconductor, Inc. AON6414AL

Manufacturer :
Alpha and Omega Semiconductor, Inc.
Mfr. Part # :
AON6414AL
Description
MOSFET N-CH 30V 13A/30A 8DFN
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
AON6414AL PDF
In Stock
914
AON6414AL Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C13A (Ta), 30A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs8mOhm @ 20A, 10V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs24 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds1380 pF @ 15 V
FET Feature-
Power Dissipation (Max)2.3W (Ta), 31W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-DFN (5x6)
Package / Case8-VDFN Exposed Pad
Request Quote Now
Request Quote Now

We can supply AON6414AL, use the request quote form to request AON6414AL pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number AON6414AL. The price and lead time for AON6414AL depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# AON6414AL. We look forward to working with you to establish long-term relations of cooperation.
