AO6701

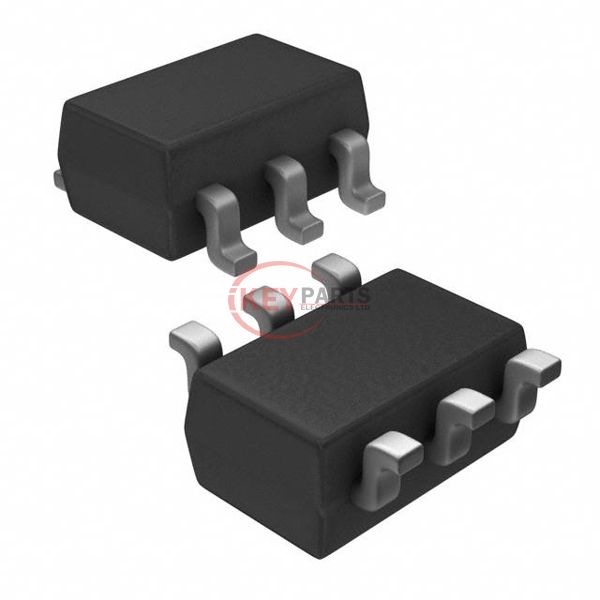

Enlarger

Lmages are for reference only See Product Specitications

Alpha and Omega Semiconductor, Inc. AO6701

Manufacturer :
Alpha and Omega Semiconductor, Inc.
Mfr. Part # :
AO6701
Description
MOSFET P-CH 30V 2.3A 6TSOP
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
AO6701 PDF
In Stock
391
AO6701 Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C2.3A (Ta)
Drive Voltage (Max Rds On, Min Rds On)2.5V, 10V
Rds On (Max) @ Id, Vgs135mOhm @ 2.3A, 10V
Vgs(th) (Max) @ Id1.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs4.9 nC @ 4.5 V
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds409 pF @ 15 V
FET FeatureSchottky Diode (Isolated)
Power Dissipation (Max)1.15W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package6-TSOP
Package / CaseSC-74, SOT-457
Request Quote Now
Request Quote Now

We can supply AO6701, use the request quote form to request AO6701 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number AO6701. The price and lead time for AO6701 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# AO6701. We look forward to working with you to establish long-term relations of cooperation.
