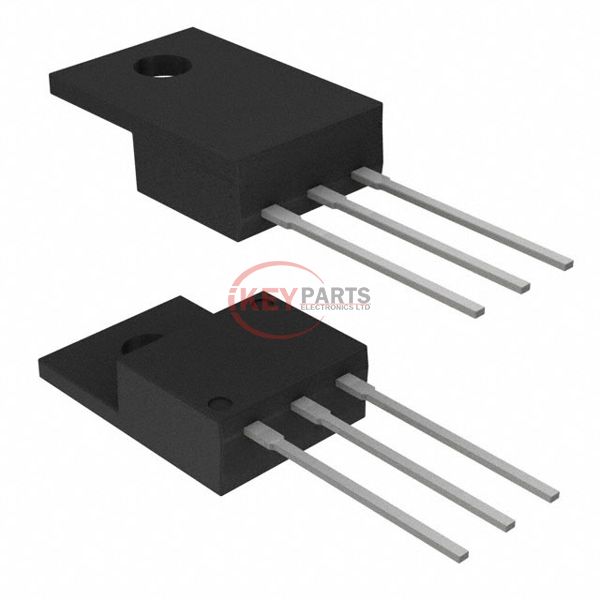

BXL4001

Enlarger

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor BXL4001

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
BXL4001
Description
MOSFET N-CH 75V 85A TO220
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
BXL4001 PDF
In Stock
424
BXL4001 Tech Specifications
Series-
PackageBulk
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)75 V
Current - Continuous Drain (Id) @ 25°C85A (Ta)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs12.4mOhm @ 43A, 10V
Vgs(th) (Max) @ Id4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs115 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds6700 pF @ 20 V
FET Feature-
Power Dissipation (Max)1.75W (Ta), 75W (Tc)
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-220(LS)
Package / CaseTO-220-3
Request Quote Now
Request Quote Now

We can supply BXL4001, use the request quote form to request BXL4001 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number BXL4001. The price and lead time for BXL4001 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# BXL4001. We look forward to working with you to establish long-term relations of cooperation.
