IPS05N03LB G

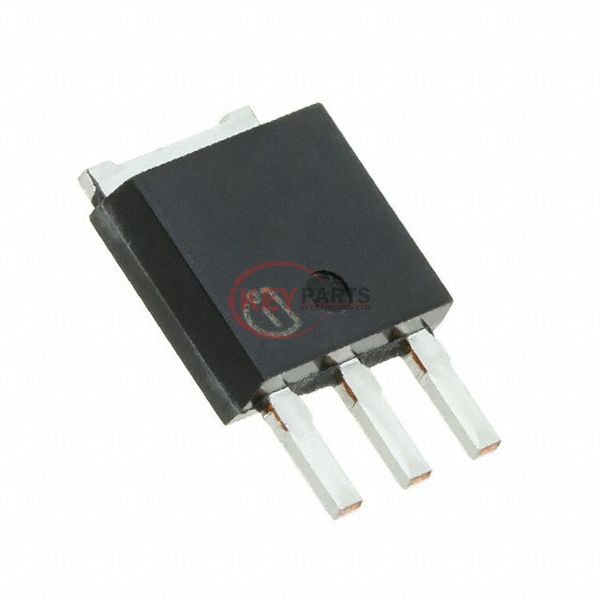

Enlarger

Lmages are for reference only See Product Specitications

IR (Infineon Technologies) IPS05N03LB G

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
IPS05N03LB G
Description
MOSFET N-CH 30V 90A TO251-3
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IPS05N03LB G PDF
In Stock
320
IPS05N03LB G Tech Specifications
SeriesOptiMOS™
PackageTube
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C90A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs5mOhm @ 60A, 10V
Vgs(th) (Max) @ Id2V @ 40µA
Gate Charge (Qg) (Max) @ Vgs25 nC @ 5 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds3200 pF @ 15 V
FET Feature-
Power Dissipation (Max)94W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackagePG-TO251-3
Package / CaseTO-251-3 Stub Leads, IPak
Request Quote Now
Request Quote Now

We can supply IPS05N03LB G, use the request quote form to request IPS05N03LB G pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IPS05N03LB G. The price and lead time for IPS05N03LB G depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IPS05N03LB G. We look forward to working with you to establish long-term relations of cooperation.
