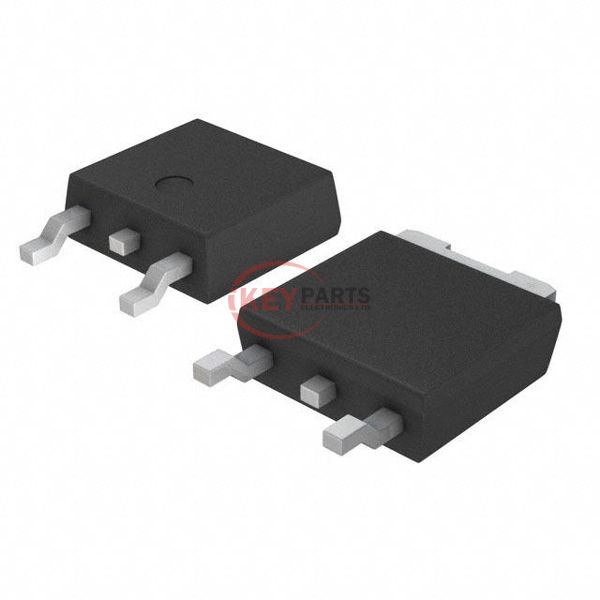

IRFR224

Enlarger

Lmages are for reference only See Product Specitications

Vishay / Siliconix IRFR224

Manufacturer :
Vishay / Siliconix
Mfr. Part # :
IRFR224
Description
MOSFET N-CH 250V 3.8A DPAK
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IRFR224 PDF
In Stock
471
IRFR224 Tech Specifications
Series-
PackageTube
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)250 V
Current - Continuous Drain (Id) @ 25°C3.8A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs1.1Ohm @ 2.3A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs14 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds260 pF @ 25 V
FET Feature-
Power Dissipation (Max)2.5W (Ta), 42W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageD-Pak
Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63
Request Quote Now
Request Quote Now

We can supply IRFR224, use the request quote form to request IRFR224 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IRFR224. The price and lead time for IRFR224 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IRFR224. We look forward to working with you to establish long-term relations of cooperation.
