ZXMN6A25G

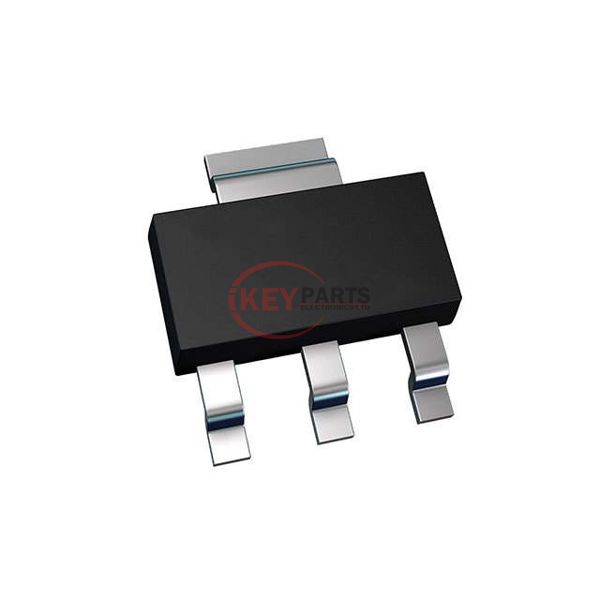

Enlarger

Lmages are for reference only See Product Specitications

Zetex Semiconductors (Diodes Inc.) ZXMN6A25G

Manufacturer :
Zetex Semiconductors (Diodes Inc.)
Mfr. Part # :
ZXMN6A25G
Description
MOSFET N-CH 60V 4.8A SOT223
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
ZXMN6A25G PDF
In Stock
818
ZXMN6A25G Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C4.8A (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs50mOhm @ 3.6A, 10V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs20.4 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds1063 pF @ 30 V
FET Feature-
Power Dissipation (Max)2W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSOT-223
Package / CaseTO-261-4, TO-261AA
Request Quote Now
Request Quote Now

We can supply ZXMN6A25G, use the request quote form to request ZXMN6A25G pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number ZXMN6A25G. The price and lead time for ZXMN6A25G depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# ZXMN6A25G. We look forward to working with you to establish long-term relations of cooperation.
