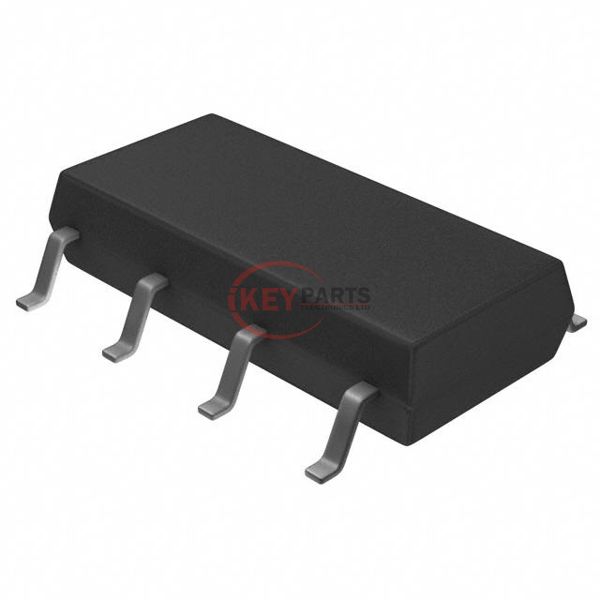

UPA2736GR-E1-AX

Enlarger

Lmages are for reference only See Product Specitications

Renesas Electronics America UPA2736GR-E1-AX

Manufacturer :
Renesas Electronics America
Mfr. Part # :
UPA2736GR-E1-AX
Description
MOSFET P-CH 30V 14A 8SOP
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
UPA2736GR-E1-AX PDF
UPA2736GR-E1-AX Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C14A (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs7mOhm @ 14A, 10V
Vgs(th) (Max) @ Id-
Gate Charge (Qg) (Max) @ Vgs80 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds3400 pF @ 10 V
FET Feature-
Power Dissipation (Max)2.5W (Ta)
Operating Temperature150°C
Mounting TypeSurface Mount
Supplier Device Package8-SOP
Package / Case8-SOIC (0.154", 3.90mm Width)
Request Quote Now
Request Quote Now

We can supply UPA2736GR-E1-AX, use the request quote form to request UPA2736GR-E1-AX pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number UPA2736GR-E1-AX. The price and lead time for UPA2736GR-E1-AX depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# UPA2736GR-E1-AX. We look forward to working with you to establish long-term relations of cooperation.
