PHD36N03LT,118

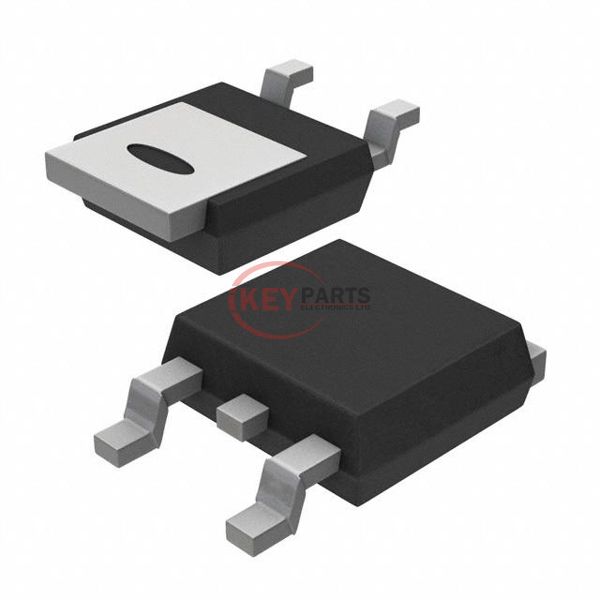

Enlarger

Lmages are for reference only See Product Specitications

NXP Semiconductors PHD36N03LT,118

Manufacturer :
NXP Semiconductors
Mfr. Part # :
PHD36N03LT,118
Description
MOSFET N-CH 30V 43.4A DPAK
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PHD36N03LT,118 PDF
PHD36N03LT,118 Tech Specifications
SeriesTrenchMOS™
PackageTape & Reel (TR)
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C43.4A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs17mOhm @ 25A, 10V
Vgs(th) (Max) @ Id2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs18.5 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds690 pF @ 25 V
FET Feature-
Power Dissipation (Max)57.6W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageDPAK
Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63
Request Quote Now
Request Quote Now

We can supply PHD36N03LT,118, use the request quote form to request PHD36N03LT,118 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PHD36N03LT,118. The price and lead time for PHD36N03LT,118 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PHD36N03LT,118. We look forward to working with you to establish long-term relations of cooperation.
