NTLJS1102PTBG

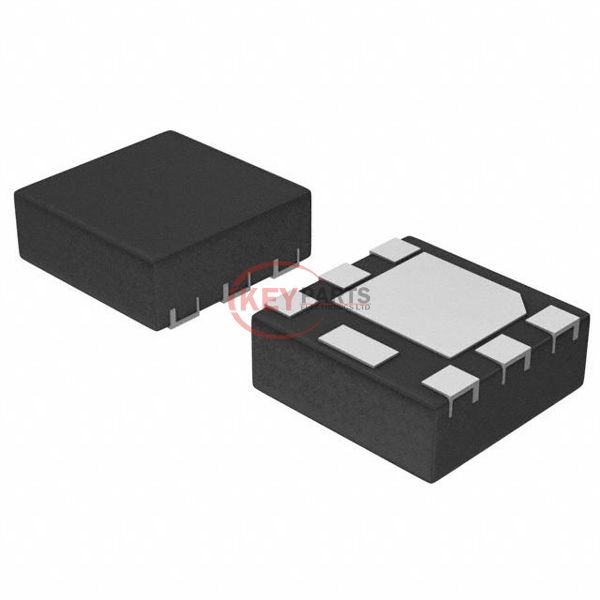

Enlarger

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor NTLJS1102PTBG

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
NTLJS1102PTBG
Description
MOSFET P-CH 8V 3.7A 6WDFN
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
NTLJS1102PTBG PDF
In Stock
941
NTLJS1102PTBG Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusObsolete
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)8 V
Current - Continuous Drain (Id) @ 25°C3.7A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.2V, 4.5V
Rds On (Max) @ Id, Vgs36mOhm @ 6.2A, 4.5V
Vgs(th) (Max) @ Id720mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs25 nC @ 4.5 V
Vgs (Max)±6V
Input Capacitance (Ciss) (Max) @ Vds1585 pF @ 4 V
FET Feature-
Power Dissipation (Max)700mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package6-WDFN (2x2)
Package / Case6-WDFN Exposed Pad
Request Quote Now
Request Quote Now

We can supply NTLJS1102PTBG, use the request quote form to request NTLJS1102PTBG pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NTLJS1102PTBG. The price and lead time for NTLJS1102PTBG depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# NTLJS1102PTBG. We look forward to working with you to establish long-term relations of cooperation.
