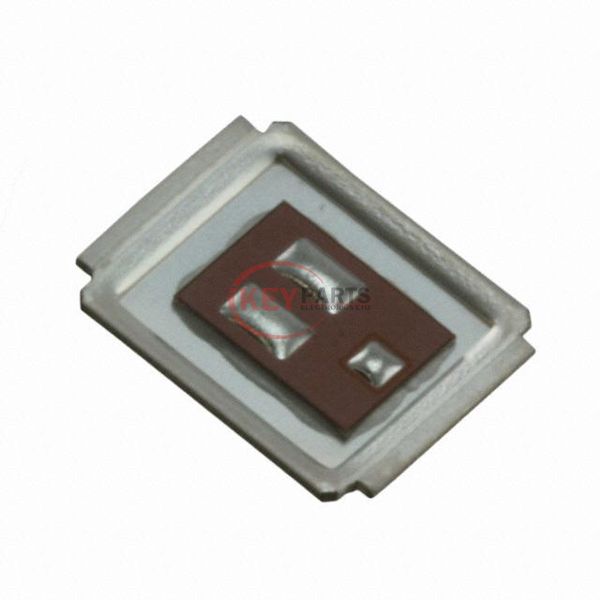

IRF6797MTR1PBF

Enlarger

Lmages are for reference only See Product Specitications

IR (Infineon Technologies) IRF6797MTR1PBF

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
IRF6797MTR1PBF
Description
MOSFET N-CH 25V 36A DIRECTFET
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IRF6797MTR1PBF PDF
In Stock
685
IRF6797MTR1PBF Tech Specifications
SeriesHEXFET®
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)25 V
Current - Continuous Drain (Id) @ 25°C36A (Ta), 210A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs1.4mOhm @ 38A, 10V
Vgs(th) (Max) @ Id2.35V @ 150µA
Gate Charge (Qg) (Max) @ Vgs68 nC @ 4.5 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds5790 pF @ 13 V
FET Feature-
Power Dissipation (Max)2.8W (Ta), 89W (Tc)
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageDIRECTFET™ MX
Package / CaseDirectFET™ Isometric MX
Request Quote Now
Request Quote Now

We can supply IRF6797MTR1PBF, use the request quote form to request IRF6797MTR1PBF pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IRF6797MTR1PBF. The price and lead time for IRF6797MTR1PBF depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IRF6797MTR1PBF. We look forward to working with you to establish long-term relations of cooperation.
