TPCA8009-H(TE12L,Q

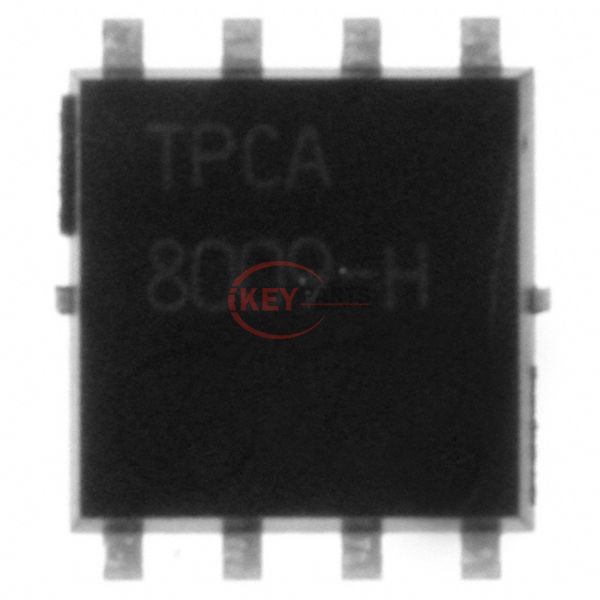

Enlarger

Lmages are for reference only See Product Specitications

Toshiba Electronic Devices and Storage Corporation TPCA8009-H(TE12L,Q

Manufacturer :
Toshiba Electronic Devices and Storage Corporation
Mfr. Part # :
TPCA8009-H(TE12L,Q
Description
MOSFET N-CH 150V 7A 8SOP
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
TPCA8009-H(TE12L,Q PDF
In Stock
393
TPCA8009-H(TE12L,Q Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)150 V
Current - Continuous Drain (Id) @ 25°C7A (Ta)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs350mOhm @ 3.5A, 10V
Vgs(th) (Max) @ Id4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs10 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds600 pF @ 10 V
FET Feature-
Power Dissipation (Max)1.6W (Ta), 45W (Tc)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-SOP Advance (5x5)
Package / Case8-PowerVDFN
Request Quote Now
Request Quote Now

We can supply TPCA8009-H(TE12L,Q, use the request quote form to request TPCA8009-H(TE12L,Q pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TPCA8009-H(TE12L,Q. The price and lead time for TPCA8009-H(TE12L,Q depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TPCA8009-H(TE12L,Q. We look forward to working with you to establish long-term relations of cooperation.
