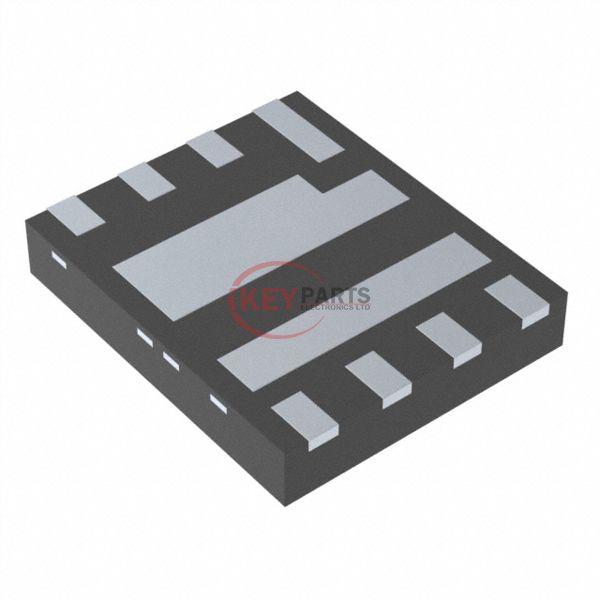

AO6085N03

Enlarger

Lmages are for reference only See Product Specitications

Alpha and Omega Semiconductor, Inc. AO6085N03

Manufacturer :
Alpha and Omega Semiconductor, Inc.
Mfr. Part # :
AO6085N03
Description
MOSFET N-CH 30V 11A/50A 8DFN
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
AO6085N03 PDF
In Stock
394
AO6085N03 Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C11A (Ta), 50A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs8.5mOhm @ 20A, 10V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs24 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds1380 pF @ 15 V
FET Feature-
Power Dissipation (Max)1.9W (Ta), 31W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-DFN (5x6)
Package / Case8-VDFN Exposed Pad
Request Quote Now
Request Quote Now

We can supply AO6085N03, use the request quote form to request AO6085N03 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number AO6085N03. The price and lead time for AO6085N03 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# AO6085N03. We look forward to working with you to establish long-term relations of cooperation.
