MCH6320-TL-E

Enlarger

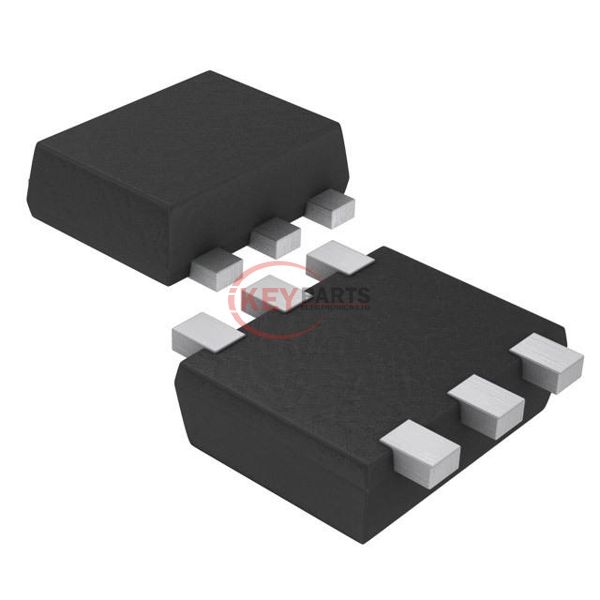

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor MCH6320-TL-E

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
MCH6320-TL-E
Description
MOSFET P-CH 12V 3.5A 6MCPH
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
MCH6320-TL-E PDF
In Stock
650
MCH6320-TL-E Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusObsolete
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)12 V
Current - Continuous Drain (Id) @ 25°C3.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.8V, 4.5V
Rds On (Max) @ Id, Vgs70mOhm @ 1.5A, 4.5V
Vgs(th) (Max) @ Id1.4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs5.6 nC @ 4.5 V
Vgs (Max)±10V
Input Capacitance (Ciss) (Max) @ Vds405 pF @ 6 V
FET Feature-
Power Dissipation (Max)1.5W (Ta)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package6-MCPH
Package / Case6-SMD, Flat Leads
Request Quote Now
Request Quote Now

We can supply MCH6320-TL-E, use the request quote form to request MCH6320-TL-E pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number MCH6320-TL-E. The price and lead time for MCH6320-TL-E depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# MCH6320-TL-E. We look forward to working with you to establish long-term relations of cooperation.
