FDR4420A

Enlarger

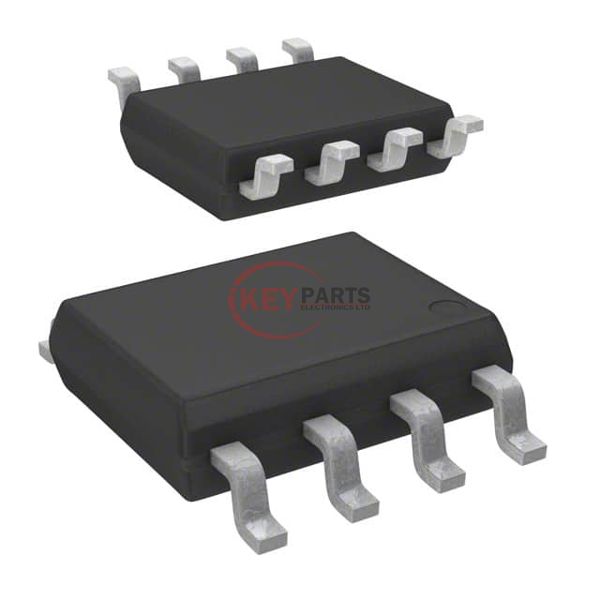

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor FDR4420A

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
FDR4420A
Description
MOSFET N-CH 30V 11A SUPERSOT8
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
FDR4420A PDF
In Stock
473
FDR4420A Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C11A (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs9mOhm @ 11A, 10V
Vgs(th) (Max) @ Id3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs33 nC @ 5 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds2560 pF @ 15 V
FET Feature-
Power Dissipation (Max)1.8W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSuperSOT™-8
Package / Case8-LSOP (0.130", 3.30mm Width)
Request Quote Now
Request Quote Now

We can supply FDR4420A, use the request quote form to request FDR4420A pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number FDR4420A. The price and lead time for FDR4420A depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# FDR4420A. We look forward to working with you to establish long-term relations of cooperation.
