MTM232230LBF

Enlarger

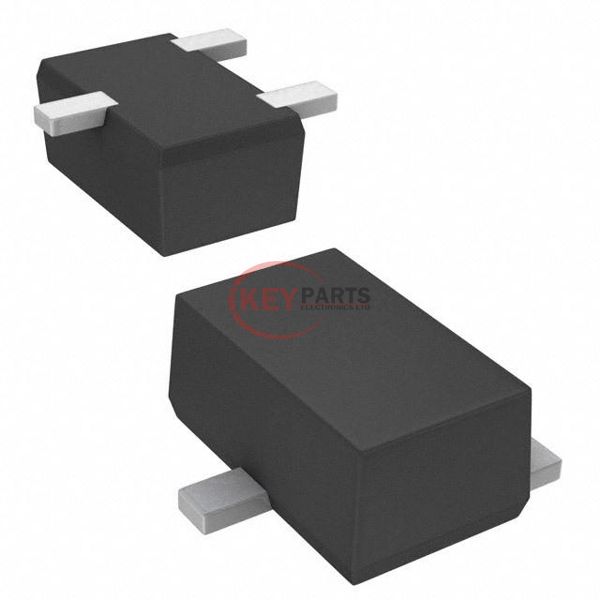

Lmages are for reference only See Product Specitications

Panasonic MTM232230LBF

Manufacturer :
Panasonic
Mfr. Part # :
MTM232230LBF
Description
MOSFET N CH 20V 4.5A SMINI3-G1-B
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
MTM232230LBF PDF
In Stock
330
MTM232230LBF Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C4.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)2.5V, 4.5V
Rds On (Max) @ Id, Vgs28mOhm @ 1A, 4V
Vgs(th) (Max) @ Id1.3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs-
Vgs (Max)±10V
Input Capacitance (Ciss) (Max) @ Vds1200 pF @ 10 V
FET Feature-
Power Dissipation (Max)500mW (Ta)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSMini3-G1-B
Package / CaseSC-70, SOT-323
Request Quote Now
Request Quote Now

We can supply MTM232230LBF, use the request quote form to request MTM232230LBF pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number MTM232230LBF. The price and lead time for MTM232230LBF depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# MTM232230LBF. We look forward to working with you to establish long-term relations of cooperation.
