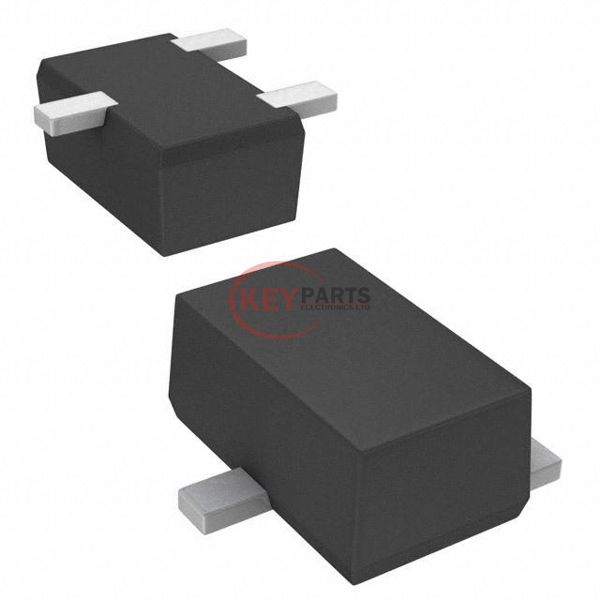

2SJ053600L

Enlarger

Lmages are for reference only See Product Specitications

Panasonic 2SJ053600L

Manufacturer :
Panasonic
Mfr. Part # :
2SJ053600L
Description
MOSFET P-CH 30V 100MA SMINI3-G1
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
2SJ053600L PDF
In Stock
203
2SJ053600L Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C100mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)5V
Rds On (Max) @ Id, Vgs75Ohm @ 10mA, 5V
Vgs(th) (Max) @ Id2V @ 1µA
Gate Charge (Qg) (Max) @ Vgs-
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds-
FET Feature-
Power Dissipation (Max)150mW (Ta)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSMini3-G1
Package / CaseSC-70, SOT-323
Request Quote Now
Request Quote Now

We can supply 2SJ053600L, use the request quote form to request 2SJ053600L pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 2SJ053600L. The price and lead time for 2SJ053600L depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 2SJ053600L. We look forward to working with you to establish long-term relations of cooperation.
