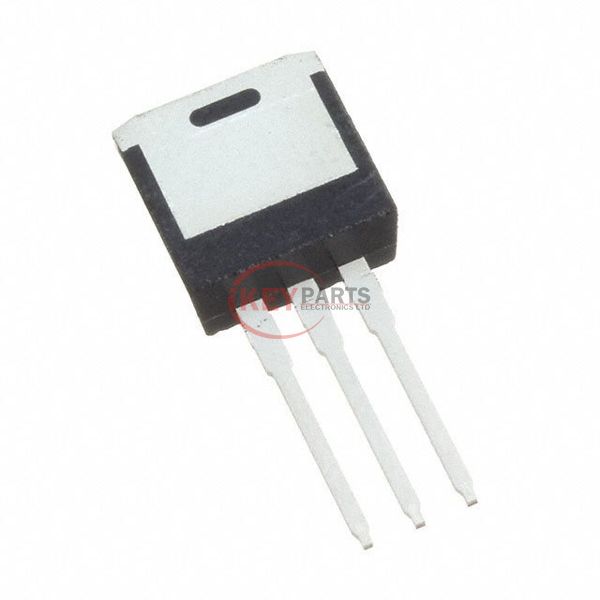

IPI05N03LA

Enlarger

Lmages are for reference only See Product Specitications

IR (Infineon Technologies) IPI05N03LA

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
IPI05N03LA
Description
MOSFET N-CH 25V 80A TO262-3
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IPI05N03LA PDF
In Stock
990
IPI05N03LA Tech Specifications
SeriesOptiMOS™
PackageTube
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)25 V
Current - Continuous Drain (Id) @ 25°C80A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs4.9mOhm @ 55A, 10V
Vgs(th) (Max) @ Id2V @ 50µA
Gate Charge (Qg) (Max) @ Vgs25 nC @ 5 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds3110 pF @ 15 V
FET Feature-
Power Dissipation (Max)94W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackagePG-TO262-3
Package / CaseTO-262-3 Long Leads, I²Pak, TO-262AA
Request Quote Now
Request Quote Now

We can supply IPI05N03LA, use the request quote form to request IPI05N03LA pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IPI05N03LA. The price and lead time for IPI05N03LA depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IPI05N03LA. We look forward to working with you to establish long-term relations of cooperation.
