APT20N60SC3G

Enlarger

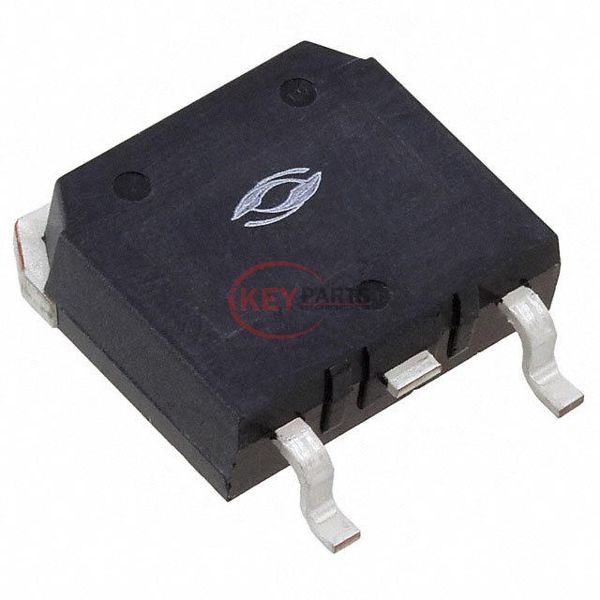

Lmages are for reference only See Product Specitications

Microsemi APT20N60SC3G

Manufacturer :
Microsemi
Mfr. Part # :
APT20N60SC3G
Description
MOSFET N-CH 600V 20.7A D3PAK
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
APT20N60SC3G PDF
In Stock
558
APT20N60SC3G Tech Specifications
SeriesCoolMOS™
PackageTube
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)600 V
Current - Continuous Drain (Id) @ 25°C20.7A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs190mOhm @ 13.1A, 10V
Vgs(th) (Max) @ Id3.9V @ 1mA
Gate Charge (Qg) (Max) @ Vgs114 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds2440 pF @ 25 V
FET Feature-
Power Dissipation (Max)208W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageD3Pak
Package / CaseTO-268-3, D³Pak (2 Leads + Tab), TO-268AA
Request Quote Now
Request Quote Now

We can supply APT20N60SC3G, use the request quote form to request APT20N60SC3G pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number APT20N60SC3G. The price and lead time for APT20N60SC3G depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# APT20N60SC3G. We look forward to working with you to establish long-term relations of cooperation.
