PMFPB6532UP,115

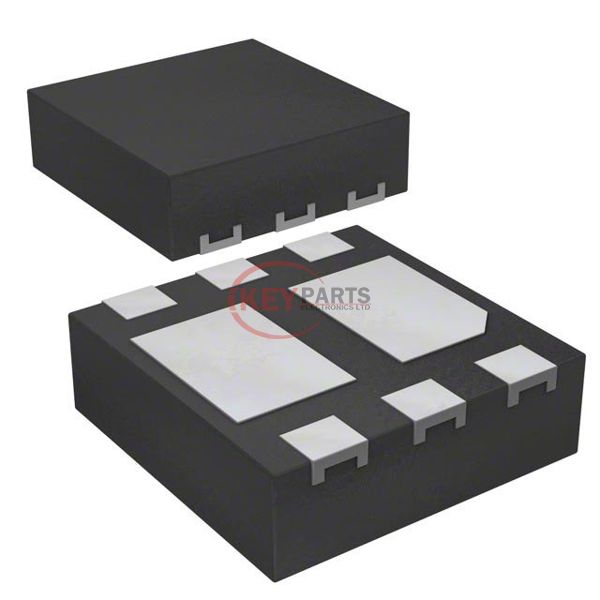

Enlarger

Lmages are for reference only See Product Specitications

NXP Semiconductors PMFPB6532UP,115

Manufacturer :
NXP Semiconductors
Mfr. Part # :
PMFPB6532UP,115
Description
MOSFET P-CH 20V 3.5A DFN2020-6
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PMFPB6532UP,115 PDF
In Stock
860
PMFPB6532UP,115 Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C3.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.8V, 4.5V
Rds On (Max) @ Id, Vgs70mOhm @ 1A, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs6 nC @ 4.5 V
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds380 pF @ 10 V
FET FeatureSchottky Diode (Isolated)
Power Dissipation (Max)520mW (Ta), 8.3W (Tc)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageDFN2020-6
Package / Case6-UDFN Exposed Pad
Request Quote Now
Request Quote Now

We can supply PMFPB6532UP,115, use the request quote form to request PMFPB6532UP,115 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PMFPB6532UP,115. The price and lead time for PMFPB6532UP,115 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PMFPB6532UP,115. We look forward to working with you to establish long-term relations of cooperation.
