PMF77XN,115

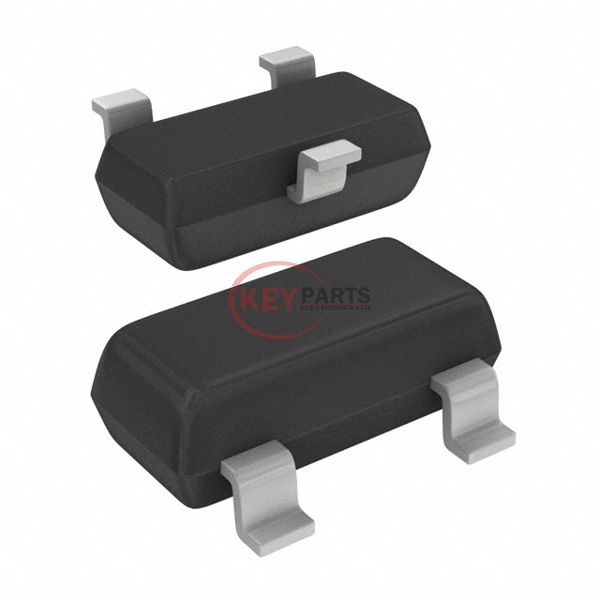

Enlarger

Lmages are for reference only See Product Specitications

NXP Semiconductors PMF77XN,115

Manufacturer :
NXP Semiconductors
Mfr. Part # :
PMF77XN,115
Description
MOSFET N-CH 30V 1.5A SOT323-3
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PMF77XN,115 PDF
In Stock
994
PMF77XN,115 Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C1.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)2.5V, 4.5V
Rds On (Max) @ Id, Vgs97mOhm @ 1.5A, 4.5V
Vgs(th) (Max) @ Id1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs2.9 nC @ 4.5 V
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds170 pF @ 15 V
FET Feature-
Power Dissipation (Max)270mW (Ta), 1.92W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSOT-323-3
Package / CaseSC-70, SOT-323
Request Quote Now
Request Quote Now

We can supply PMF77XN,115, use the request quote form to request PMF77XN,115 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PMF77XN,115. The price and lead time for PMF77XN,115 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PMF77XN,115. We look forward to working with you to establish long-term relations of cooperation.
