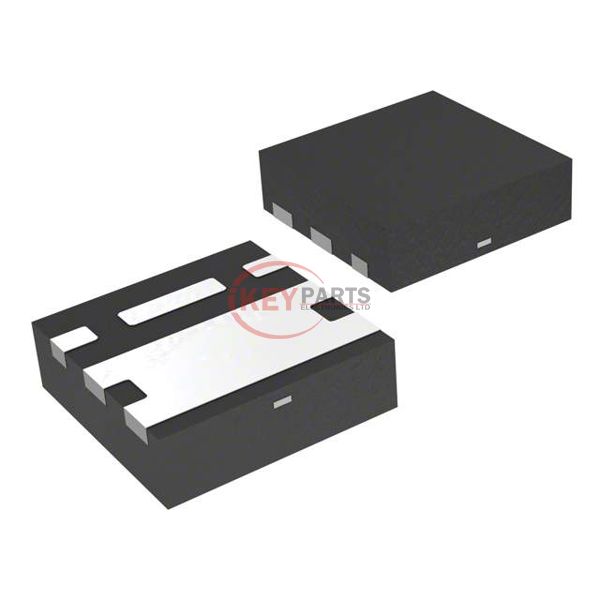

DMP1022UFDE-7

Enlarger

Lmages are for reference only See Product Specitications

Zetex Semiconductors (Diodes Inc.) DMP1022UFDE-7

Manufacturer :
Zetex Semiconductors (Diodes Inc.)
Mfr. Part # :
DMP1022UFDE-7
Description
MOSFET P-CH 12V 9.1A 6UDFN
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
DMP1022UFDE-7 PDF
In Stock
722
DMP1022UFDE-7 Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)12 V
Current - Continuous Drain (Id) @ 25°C9.1A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.2V, 4.5V
Rds On (Max) @ Id, Vgs16mOhm @ 8.2A, 4.5V
Vgs(th) (Max) @ Id800mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs42.6 nC @ 5 V
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds2953 pF @ 4 V
FET Feature-
Power Dissipation (Max)660mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageU-DFN2020-6 (Type E)
Package / Case6-PowerUDFN
Request Quote Now
Request Quote Now

We can supply DMP1022UFDE-7, use the request quote form to request DMP1022UFDE-7 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number DMP1022UFDE-7. The price and lead time for DMP1022UFDE-7 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# DMP1022UFDE-7. We look forward to working with you to establish long-term relations of cooperation.
