IRFPS3810

Enlarger

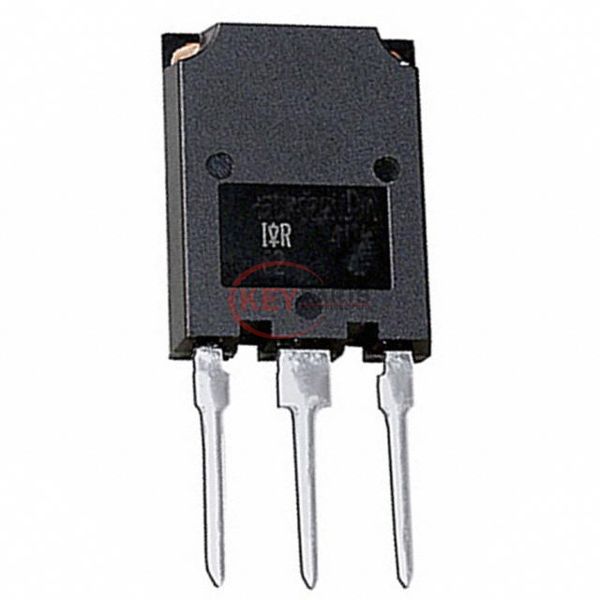

Lmages are for reference only See Product Specitications

IR (Infineon Technologies) IRFPS3810

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
IRFPS3810
Description
MOSFET N-CH 100V 170A SUPER247
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IRFPS3810 PDF
In Stock
830
IRFPS3810 Tech Specifications
SeriesHEXFET®
PackageBulk
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)100 V
Current - Continuous Drain (Id) @ 25°C170A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs9mOhm @ 100A, 10V
Vgs(th) (Max) @ Id5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs390 nC @ 10 V
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds6790 pF @ 25 V
FET Feature-
Power Dissipation (Max)580W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageSUPER-247™ (TO-274AA)
Package / CaseTO-274AA
Request Quote Now
Request Quote Now

We can supply IRFPS3810, use the request quote form to request IRFPS3810 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IRFPS3810. The price and lead time for IRFPS3810 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IRFPS3810. We look forward to working with you to establish long-term relations of cooperation.
