2N7002PT,115

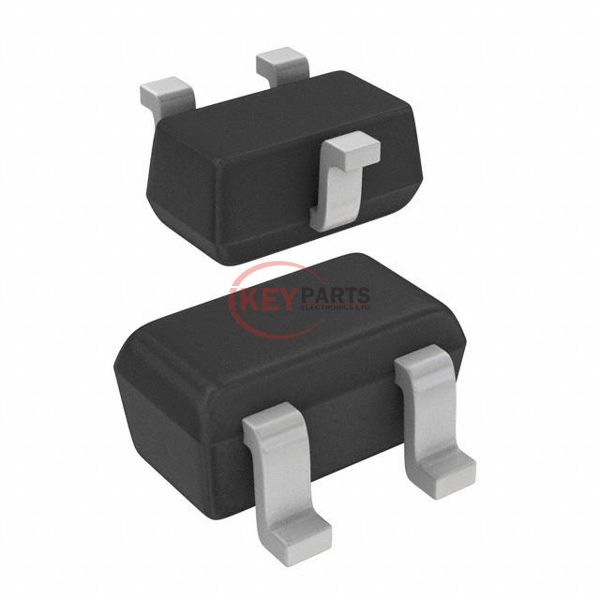

Enlarger

Lmages are for reference only See Product Specitications

NXP Semiconductors 2N7002PT,115

Manufacturer :
NXP Semiconductors
Mfr. Part # :
2N7002PT,115
Description
MOSFET N-CH 60V 310MA SC75
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
2N7002PT,115 PDF
In Stock
725
2N7002PT,115 Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C310mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)5V, 10V
Rds On (Max) @ Id, Vgs1.6Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id2.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs0.8 nC @ 4.5 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds50 pF @ 10 V
FET Feature-
Power Dissipation (Max)250mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSC-75
Package / CaseSC-75, SOT-416
Request Quote Now
Request Quote Now

We can supply 2N7002PT,115, use the request quote form to request 2N7002PT,115 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 2N7002PT,115. The price and lead time for 2N7002PT,115 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 2N7002PT,115. We look forward to working with you to establish long-term relations of cooperation.
