IRL3202S

Enlarger

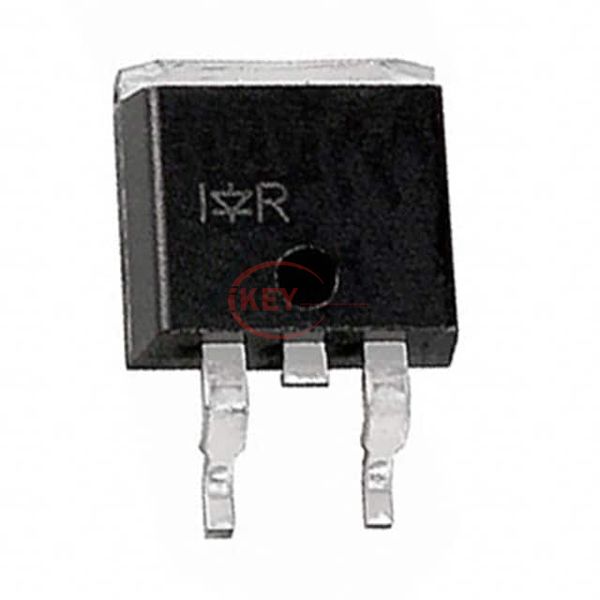

Lmages are for reference only See Product Specitications

IR (Infineon Technologies) IRL3202S

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
IRL3202S
Description
MOSFET N-CH 20V 48A D2PAK
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IRL3202S PDF
In Stock
380
IRL3202S Tech Specifications
SeriesHEXFET®
PackageTube
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C48A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 7V
Rds On (Max) @ Id, Vgs16mOhm @ 29A, 7V
Vgs(th) (Max) @ Id700mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs43 nC @ 4.5 V
Vgs (Max)±10V
Input Capacitance (Ciss) (Max) @ Vds2000 pF @ 15 V
FET Feature-
Power Dissipation (Max)69W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageD2PAK
Package / CaseTO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Request Quote Now
Request Quote Now

We can supply IRL3202S, use the request quote form to request IRL3202S pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IRL3202S. The price and lead time for IRL3202S depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IRL3202S. We look forward to working with you to establish long-term relations of cooperation.
