ZXMN10A11GTC

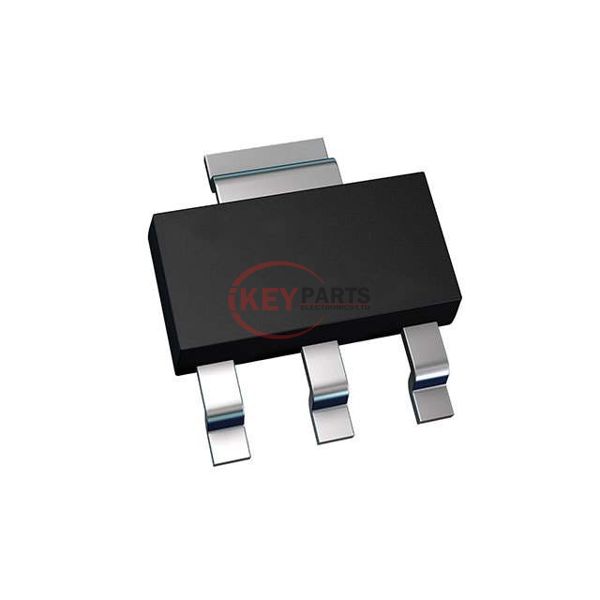

Enlarger

Lmages are for reference only See Product Specitications

Zetex Semiconductors (Diodes Inc.) ZXMN10A11GTC

Manufacturer :
Zetex Semiconductors (Diodes Inc.)
Mfr. Part # :
ZXMN10A11GTC
Description
MOSFET N-CH 100V 1.7A SOT223
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
ZXMN10A11GTC PDF
In Stock
297
ZXMN10A11GTC Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)100 V
Current - Continuous Drain (Id) @ 25°C1.7A (Ta)
Drive Voltage (Max Rds On, Min Rds On)6V, 10V
Rds On (Max) @ Id, Vgs350mOhm @ 2.6A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs5.4 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds274 pF @ 50 V
FET Feature-
Power Dissipation (Max)2W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSOT-223
Package / CaseTO-261-4, TO-261AA
Request Quote Now
Request Quote Now

We can supply ZXMN10A11GTC, use the request quote form to request ZXMN10A11GTC pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number ZXMN10A11GTC. The price and lead time for ZXMN10A11GTC depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# ZXMN10A11GTC. We look forward to working with you to establish long-term relations of cooperation.
