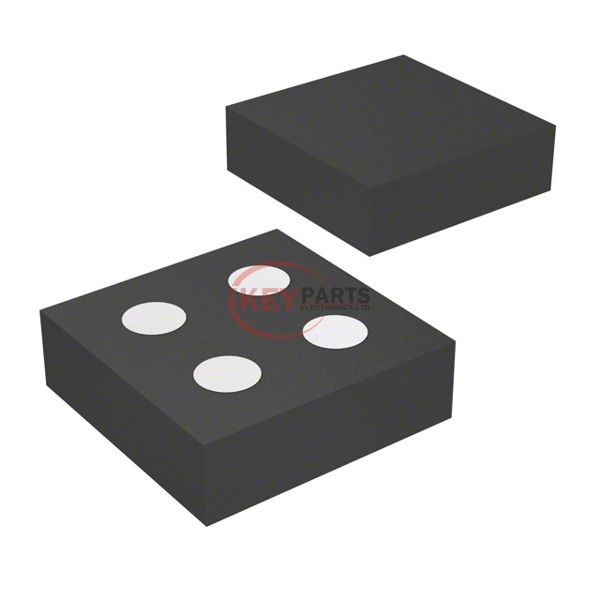

AOC2403

Enlarger

Lmages are for reference only See Product Specitications

Alpha and Omega Semiconductor, Inc. AOC2403

Manufacturer :
Alpha and Omega Semiconductor, Inc.
Mfr. Part # :
AOC2403
Description
MOSFET P-CH 20V 1.8A 4ALPHADFN
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
AOC2403 PDF
In Stock
244
AOC2403 Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C1.8A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.5V, 4.5V
Rds On (Max) @ Id, Vgs95mOhm @ 1A, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs4.8 nC @ 4.5 V
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds405 pF @ 10 V
FET Feature-
Power Dissipation (Max)450mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package4-AlphaDFN (0.97x0.97)
Package / Case4-SMD, No Lead
Request Quote Now
Request Quote Now

We can supply AOC2403, use the request quote form to request AOC2403 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number AOC2403. The price and lead time for AOC2403 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# AOC2403. We look forward to working with you to establish long-term relations of cooperation.
