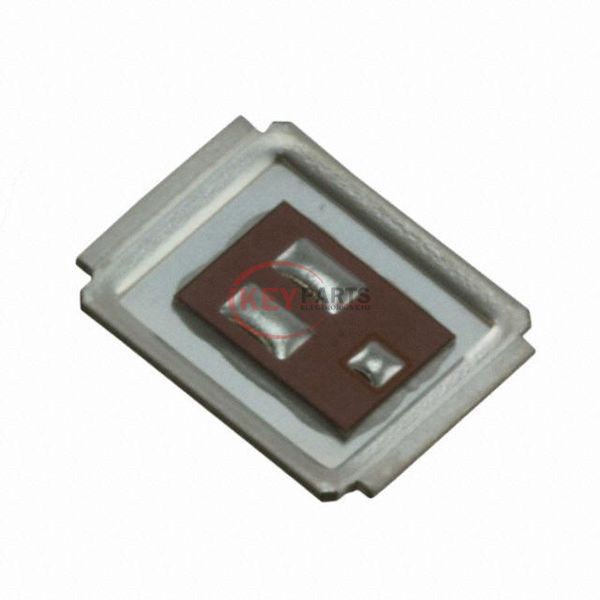

IRF8304MTR1PBF

Enlarger

Lmages are for reference only See Product Specitications

IR (Infineon Technologies) IRF8304MTR1PBF

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
IRF8304MTR1PBF
Description
MOSFET N-CH 30V 28A DIRECTFET
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IRF8304MTR1PBF PDF
In Stock
780
IRF8304MTR1PBF Tech Specifications
SeriesHEXFET®
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C28A (Ta), 170A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs2.2mOhm @ 28A, 10V
Vgs(th) (Max) @ Id2.35V @ 100µA
Gate Charge (Qg) (Max) @ Vgs42 nC @ 4.5 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds4700 pF @ 15 V
FET Feature-
Power Dissipation (Max)2.8W (Ta), 100W (Tc)
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageDIRECTFET™ MX
Package / CaseDirectFET™ Isometric MX
Request Quote Now
Request Quote Now

We can supply IRF8304MTR1PBF, use the request quote form to request IRF8304MTR1PBF pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IRF8304MTR1PBF. The price and lead time for IRF8304MTR1PBF depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IRF8304MTR1PBF. We look forward to working with you to establish long-term relations of cooperation.
