IRFD9014

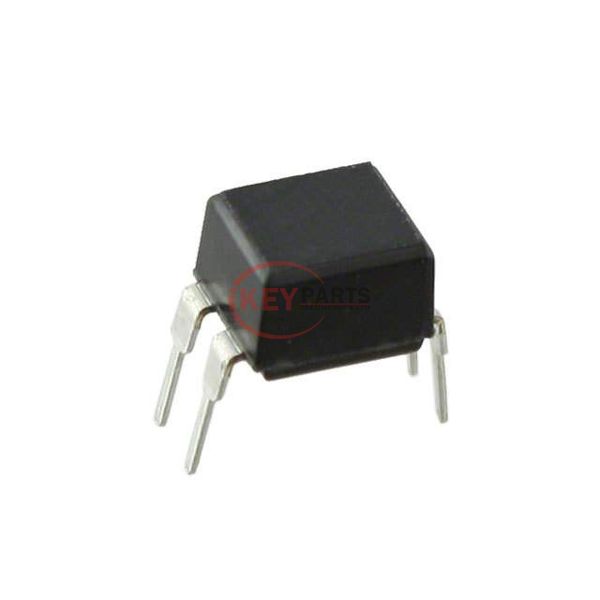

Enlarger

Lmages are for reference only See Product Specitications

Vishay / Siliconix IRFD9014

Manufacturer :
Vishay / Siliconix
Mfr. Part # :
IRFD9014
Description
MOSFET P-CH 60V 1.1A 4DIP
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IRFD9014 PDF
In Stock
372
IRFD9014 Tech Specifications
Series-
PackageTube
Part StatusObsolete
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C1.1A (Ta)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs500mOhm @ 660mA, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs12 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds270 pF @ 25 V
FET Feature-
Power Dissipation (Max)1.3W (Ta)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Supplier Device Package4-DIP, Hexdip, HVMDIP
Package / Case4-DIP (0.300", 7.62mm)
Request Quote Now
Request Quote Now

We can supply IRFD9014, use the request quote form to request IRFD9014 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IRFD9014. The price and lead time for IRFD9014 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IRFD9014. We look forward to working with you to establish long-term relations of cooperation.
