2N7002K,215

Enlarger

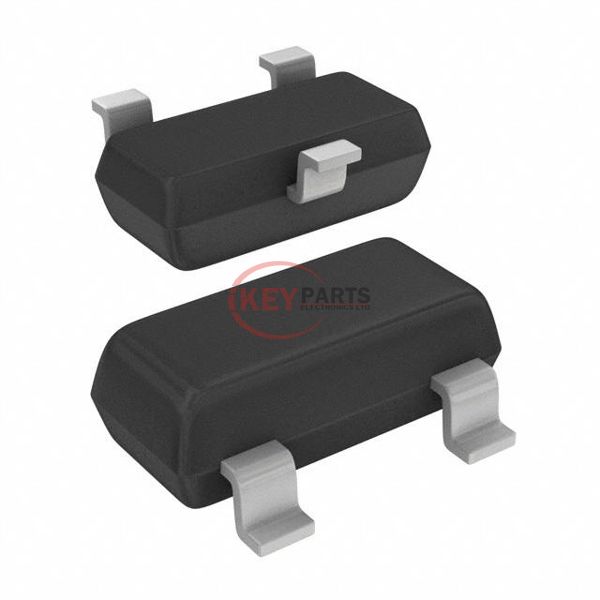

Lmages are for reference only See Product Specitications

NXP Semiconductors 2N7002K,215

Manufacturer :
NXP Semiconductors
Mfr. Part # :
2N7002K,215
Description
MOSFET N-CH 60V 340MA TO236AB
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
2N7002K,215 PDF
In Stock
495
2N7002K,215 Tech Specifications
SeriesTrenchMOS™
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C340mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs3.9Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs-
Vgs (Max)±15V
Input Capacitance (Ciss) (Max) @ Vds40 pF @ 10 V
FET Feature-
Power Dissipation (Max)830mW (Ta)
Operating Temperature-65°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageTO-236AB (SOT23)
Package / CaseTO-236-3, SC-59, SOT-23-3
Request Quote Now
Request Quote Now

We can supply 2N7002K,215, use the request quote form to request 2N7002K,215 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 2N7002K,215. The price and lead time for 2N7002K,215 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 2N7002K,215. We look forward to working with you to establish long-term relations of cooperation.
