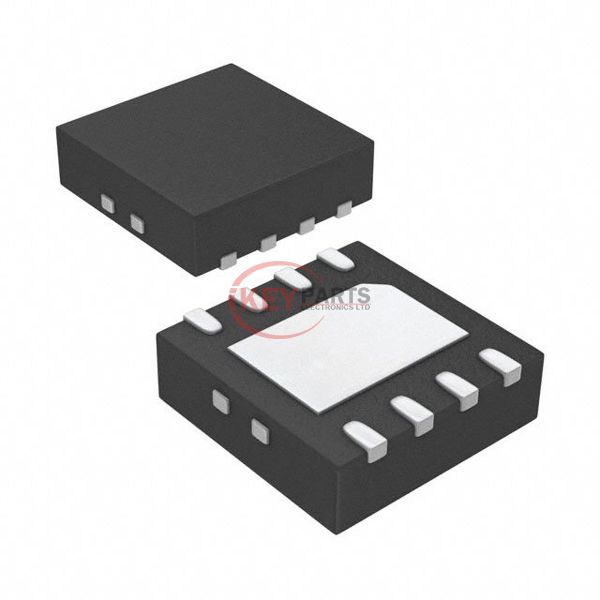

PSMN9R0-30LL,115

Enlarger

Lmages are for reference only See Product Specitications

NXP Semiconductors PSMN9R0-30LL,115

Manufacturer :
NXP Semiconductors
Mfr. Part # :
PSMN9R0-30LL,115
Description
MOSFET N-CH 30V 21A 8DFN
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PSMN9R0-30LL,115 PDF
In Stock
611
PSMN9R0-30LL,115 Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C21A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs9mOhm @ 5A, 10V
Vgs(th) (Max) @ Id2.15V @ 1mA
Gate Charge (Qg) (Max) @ Vgs20.6 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds1193 pF @ 15 V
FET Feature-
Power Dissipation (Max)50W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-DFN3333 (3.3x3.3)
Package / Case8-VDFN Exposed Pad
Request Quote Now
Request Quote Now

We can supply PSMN9R0-30LL,115, use the request quote form to request PSMN9R0-30LL,115 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PSMN9R0-30LL,115. The price and lead time for PSMN9R0-30LL,115 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PSMN9R0-30LL,115. We look forward to working with you to establish long-term relations of cooperation.
