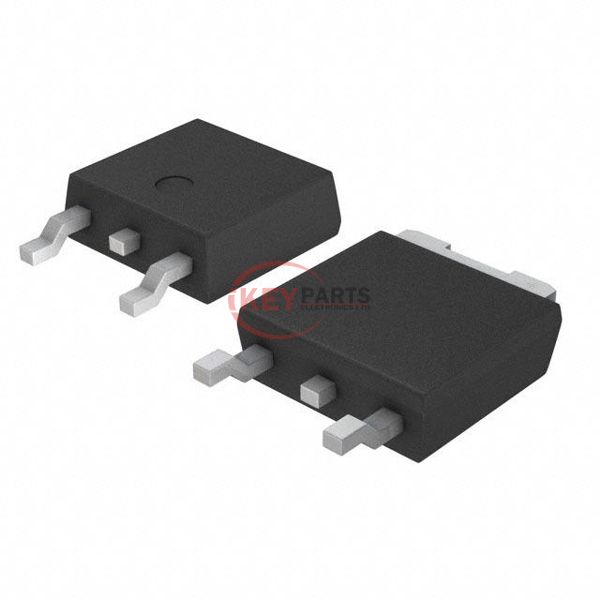

IRFR9120TRL

Enlarger

Lmages are for reference only See Product Specitications

Vishay / Siliconix IRFR9120TRL

Manufacturer :
Vishay / Siliconix
Mfr. Part # :
IRFR9120TRL
Description
MOSFET P-CH 100V 5.6A DPAK
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IRFR9120TRL PDF
In Stock
419
IRFR9120TRL Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusObsolete
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)100 V
Current - Continuous Drain (Id) @ 25°C5.6A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs600mOhm @ 3.4A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs18 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds390 pF @ 25 V
FET Feature-
Power Dissipation (Max)2.5W (Ta), 42W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageD-Pak
Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63
Request Quote Now
Request Quote Now

We can supply IRFR9120TRL, use the request quote form to request IRFR9120TRL pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IRFR9120TRL. The price and lead time for IRFR9120TRL depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IRFR9120TRL. We look forward to working with you to establish long-term relations of cooperation.
